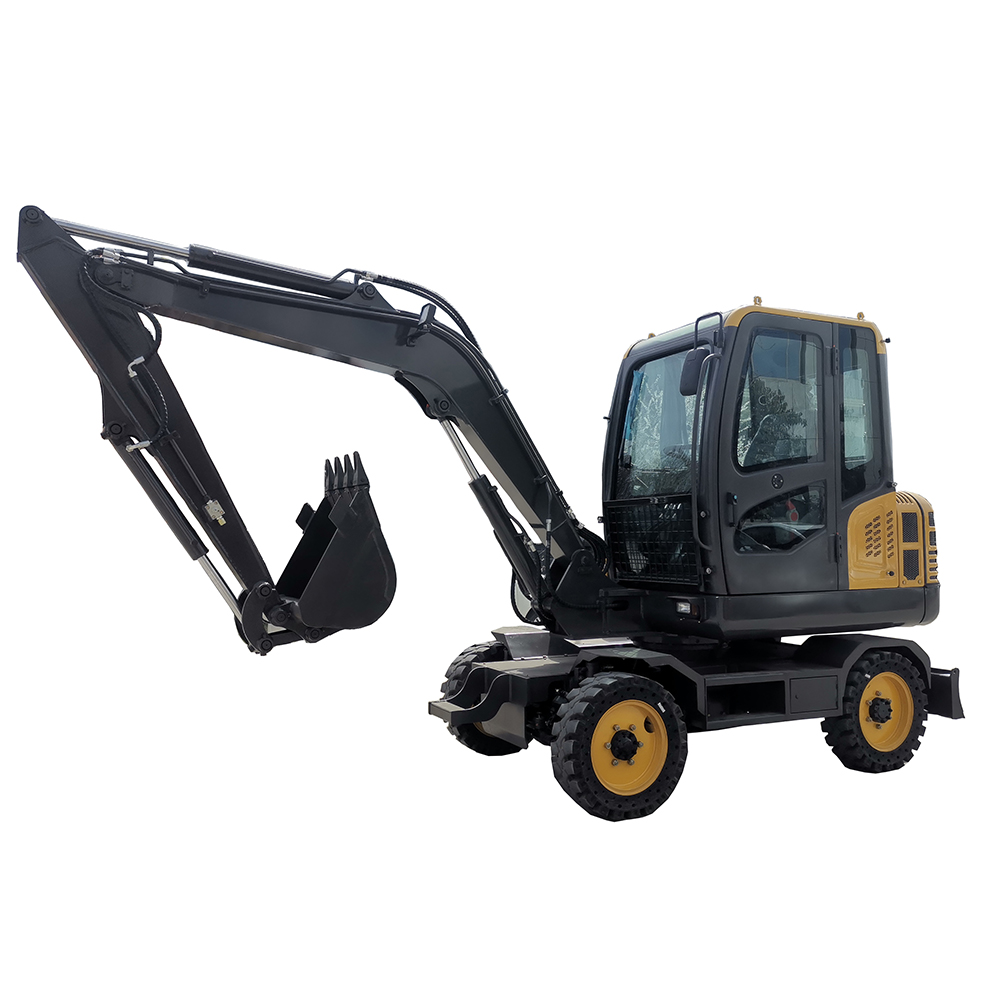

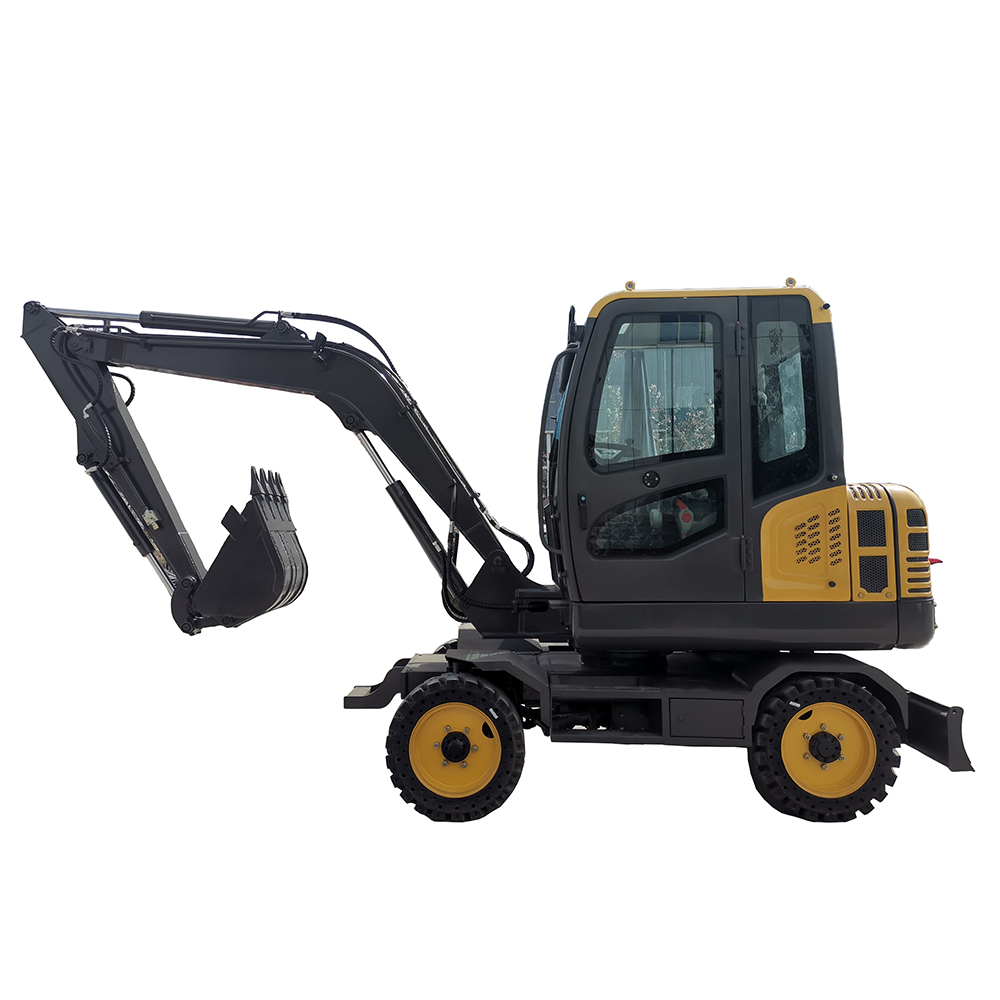

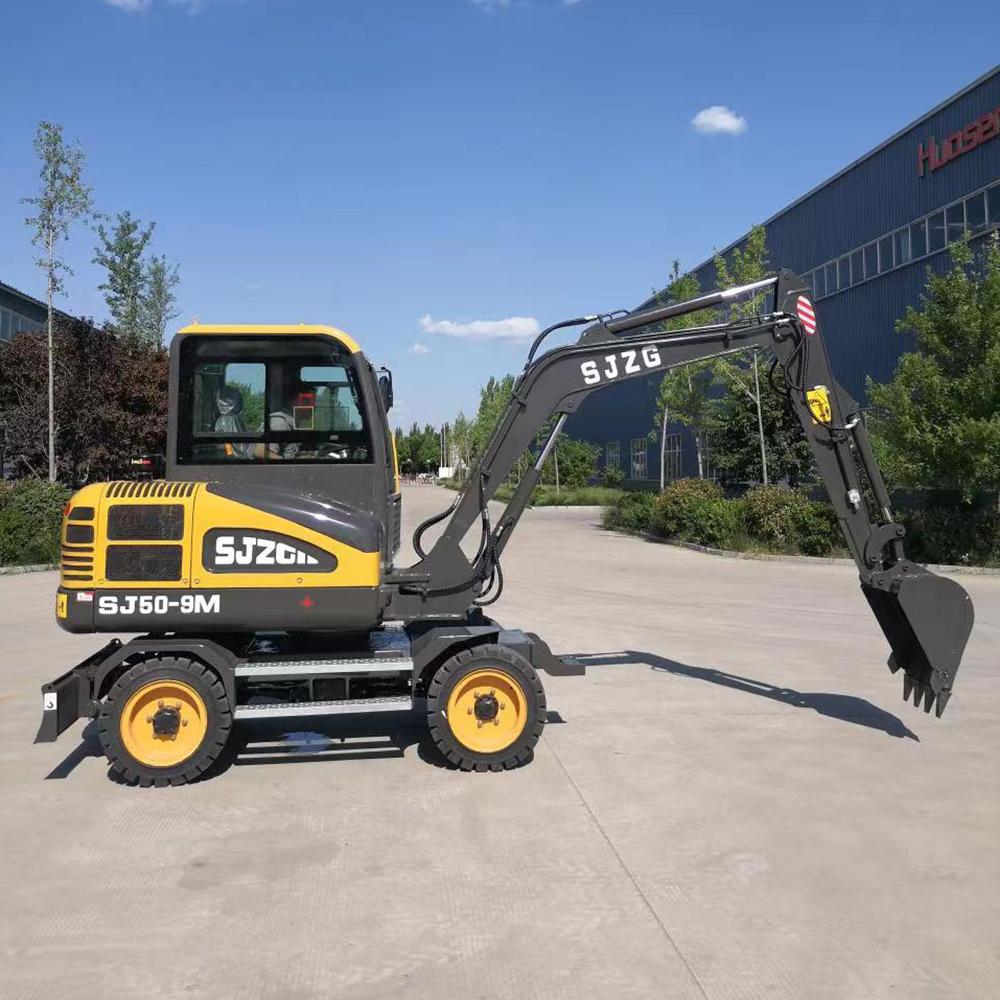

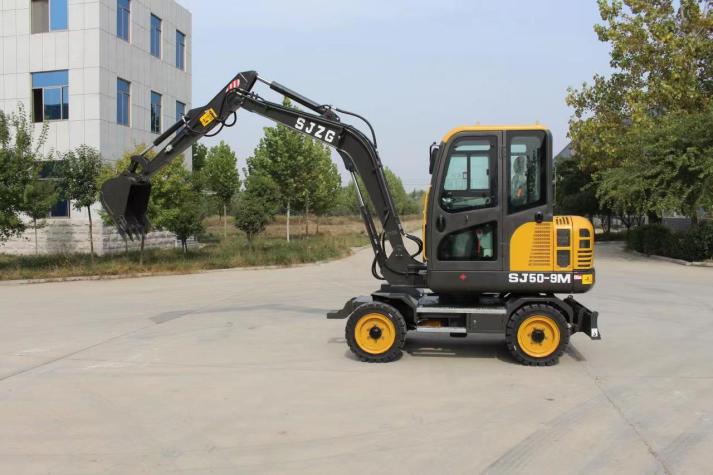

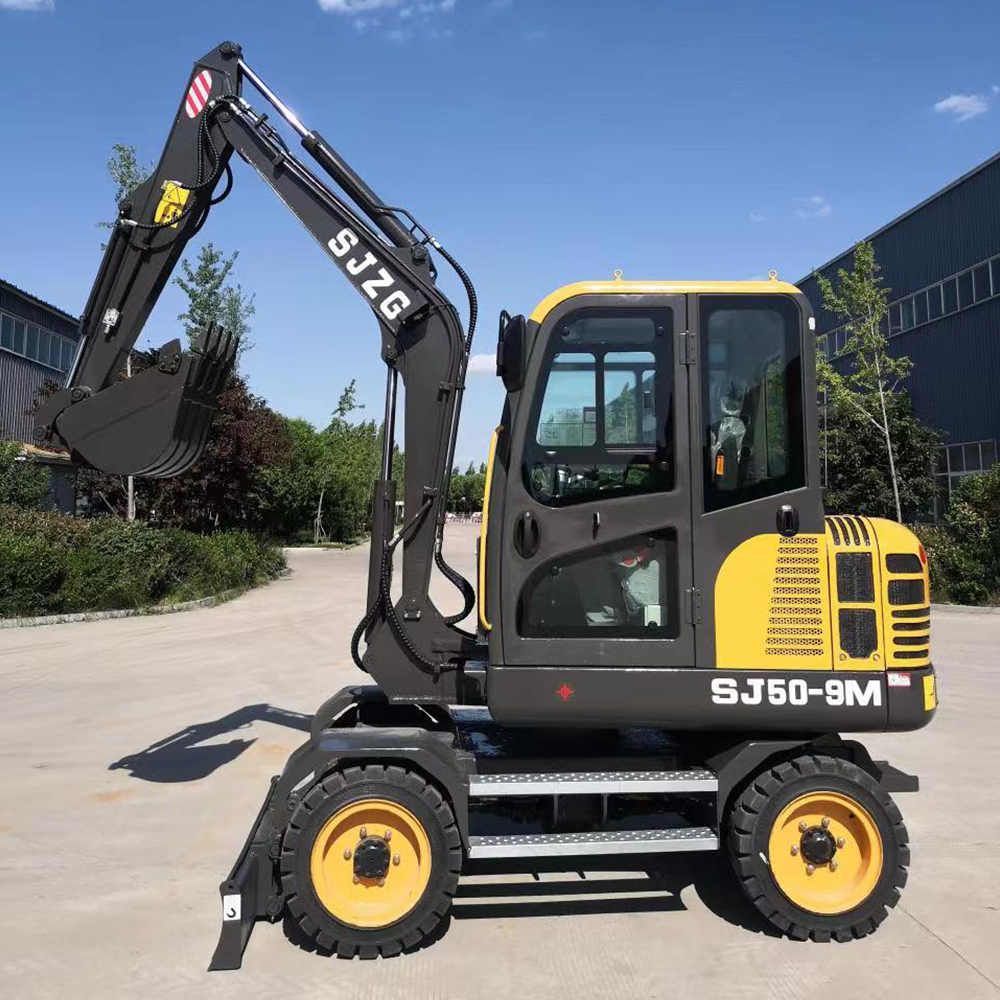

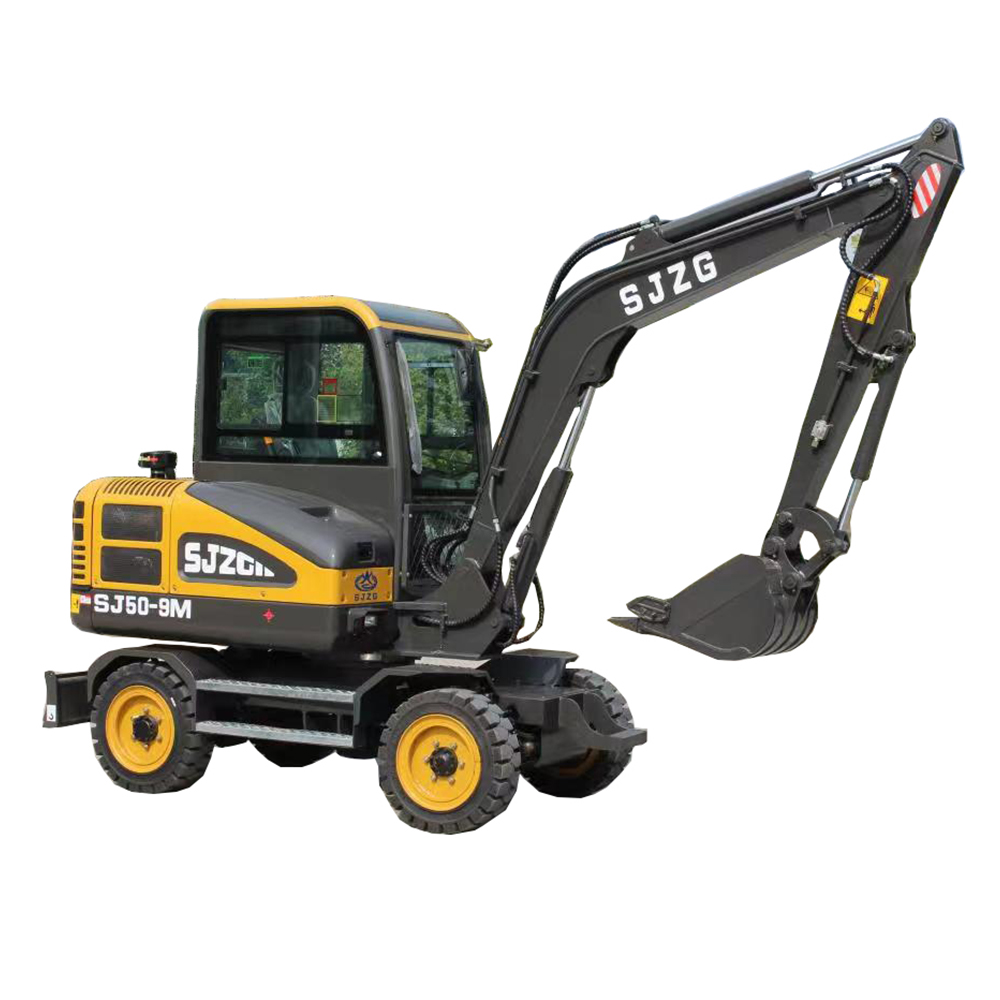

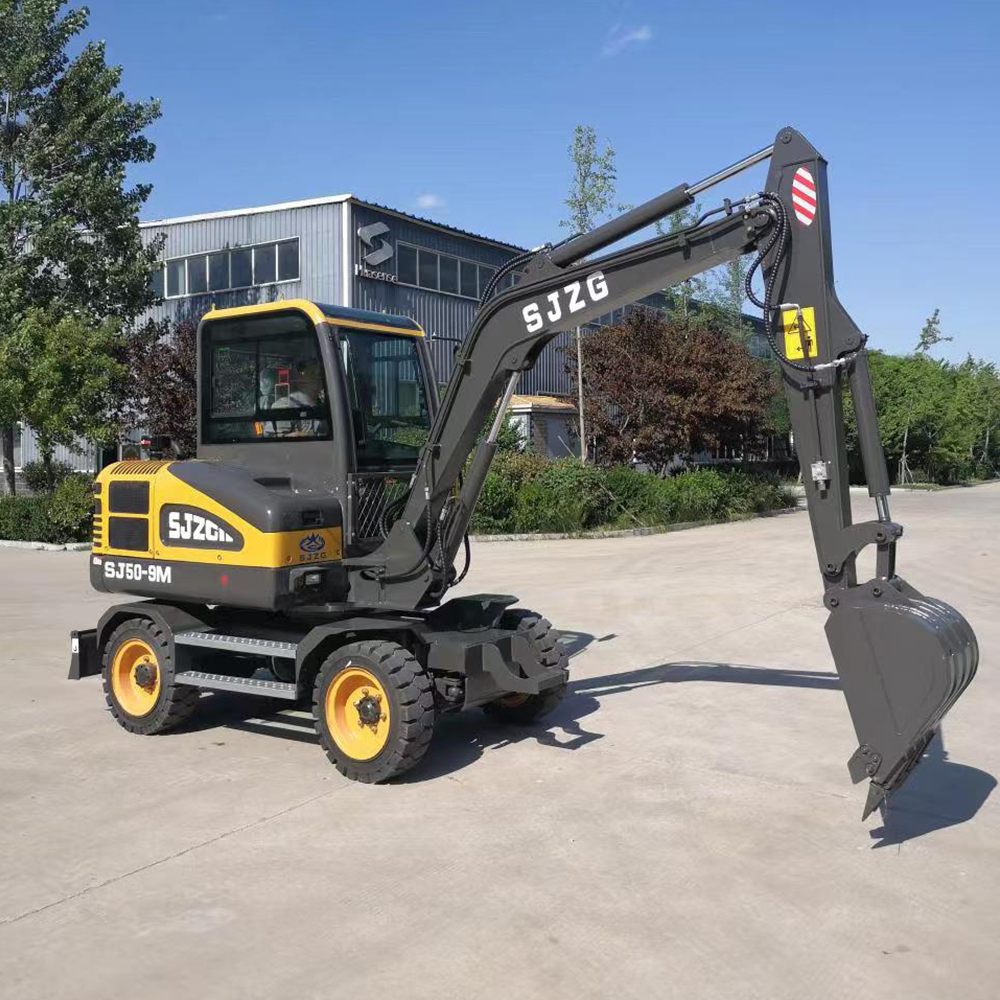

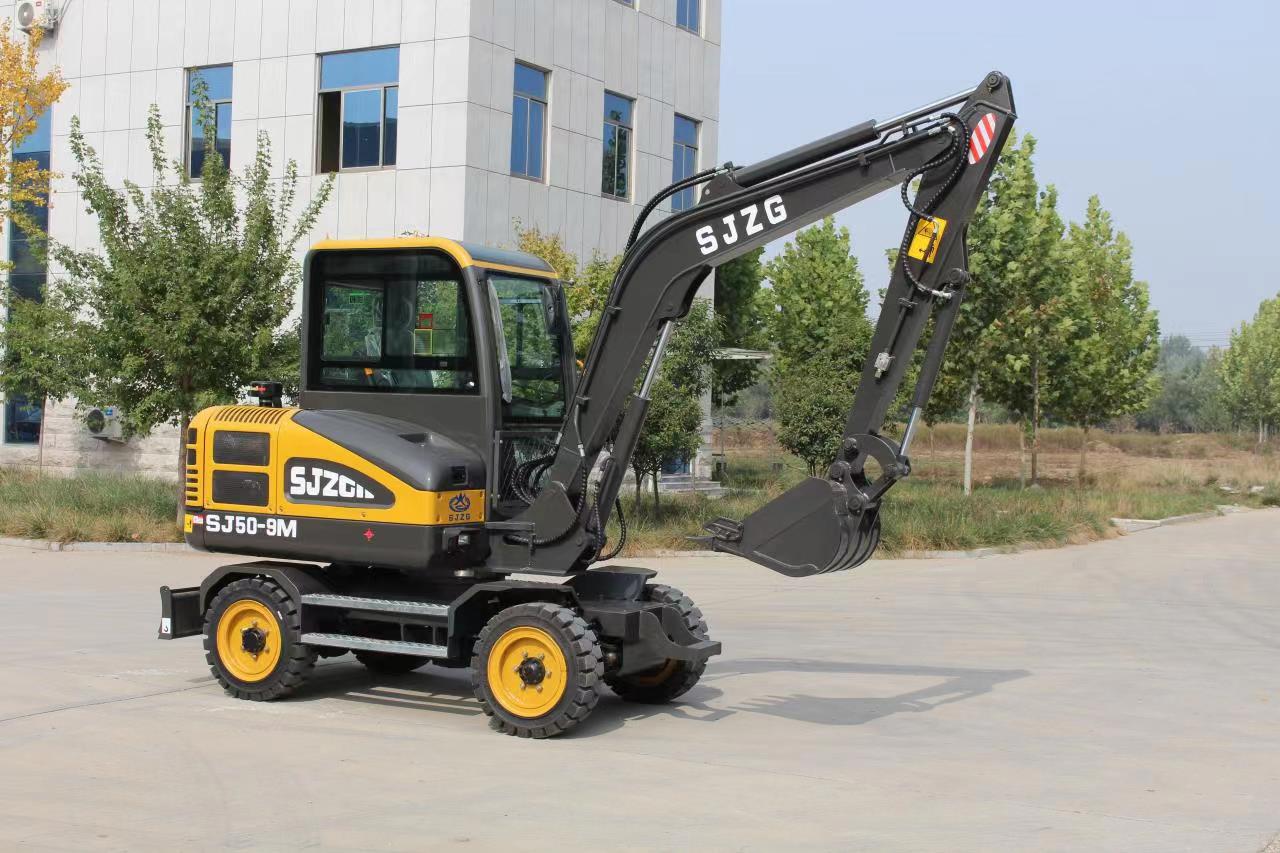

SJ50-9M Hydraulic Excavator: Main Technical Parameters | ||
1 | Model | SJ50-9M |
2 | Operating weight | 4.8t |
3 | Volume of Bucket | 0.12m³ |
4 | Engine model | (Yangdong, Changchai, Yanmar) |
5 | Power | 36.8Kw |
6 | Fuel trank | 80L |
7 | Travel speed | 16Km/h |
8 | Swing speed | 11.5r/min |
9 | Bucket digging force | 24.2KN |
10 | Hydroulic pump model | Load-Sensing Pump |
11 | Maximum flow | 95L/min |
12 | Pressure | 20Mpa |
13 | Hydraulic oil tank | 60L |
14 | A-Overall length | 5453mm |
15 | B-Overall width | 1530mm |
16 | C-Machine height(RBoom head) | 2091mm |
17 | D一Total height(to operators cab | 2633mm |
18 | E-Ground clear ance(bob-weight) | 813mm |
19 | F一Min.ground clearance | 208mm |
20 | G-Rear-end seing radium | 1538mm |
21 | K-Table width | 1530mm |
22 | L一Max.digging height | 5380mm |
23 | M-Max.dumping height | 3794mm |
24 | N-Max.digging depth | 3527mm |
25 | 0-Max.vertical wall digging depth | 2201mm |
26 | P-Max.digging reach | 5856mm |
27 | Q-The largest mining in | 5704mm |
28 | R-Min.swing radius | 2146mm |
29 | S-Minimum turning radius at | 4183mm |
Features:
1) Load-sensing hydraulic system and oil-immersed brakes, adaptable to all terrain conditions.
2) Reinforced front dozer blade featuring a balancing cylinder, combined with rear outriggers, ensures superior stability.
3) Fully imported hydraulic system and full-time four-wheel drive allow for a maximum travel speed of 16 km/h.
4) Hydraulic drive system offers stepless speed control and high torque output; electronic shifting ensures flexible operation, enabling seamless simultaneous travel and work.
5) Transportable via 20HQ shipping containers, resulting in freight cost savings of approximately 70%.
6) Customizable manufacturing services are available to meet specific construction requirements and tender specifications.
Product Overview:
Configuration and Details:

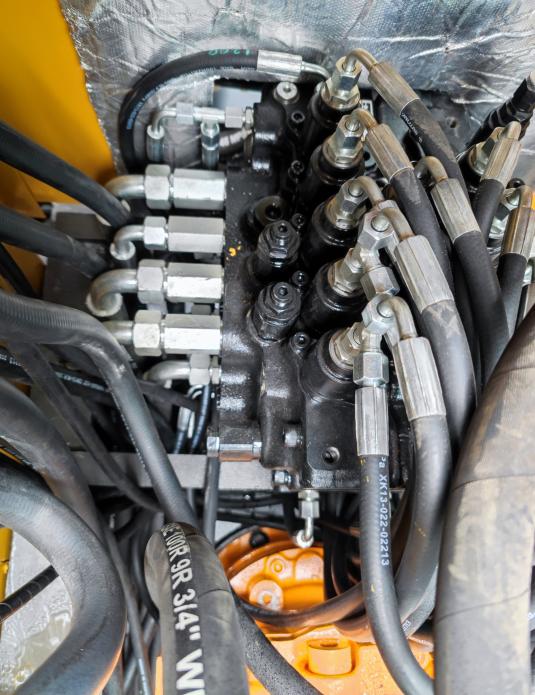

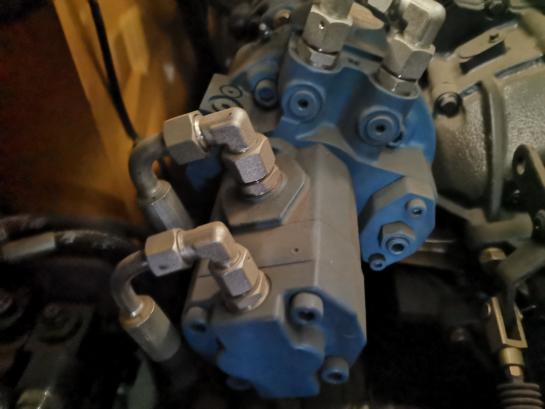

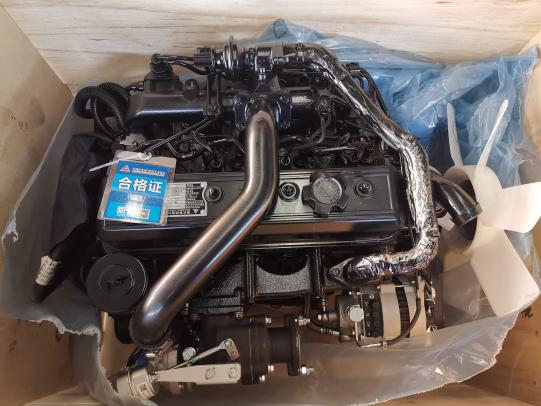

 XinChai Engine |  Doosan Main Pump |  Imported Main Valve |

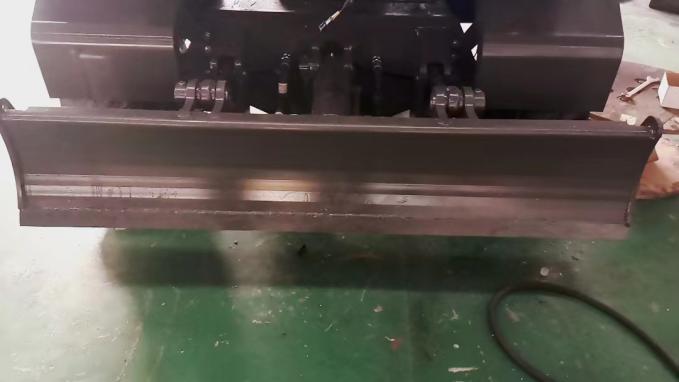

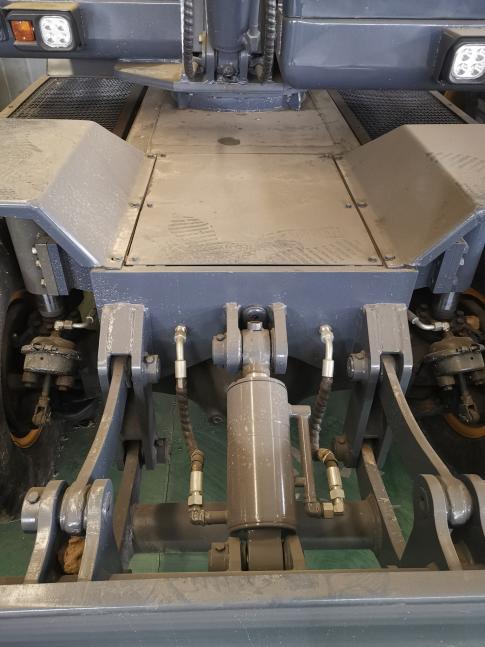

 Four-wheel drive; Air-actuated brakes |  Balancing cylinder |  Bulldozer blade for enhanced stability |

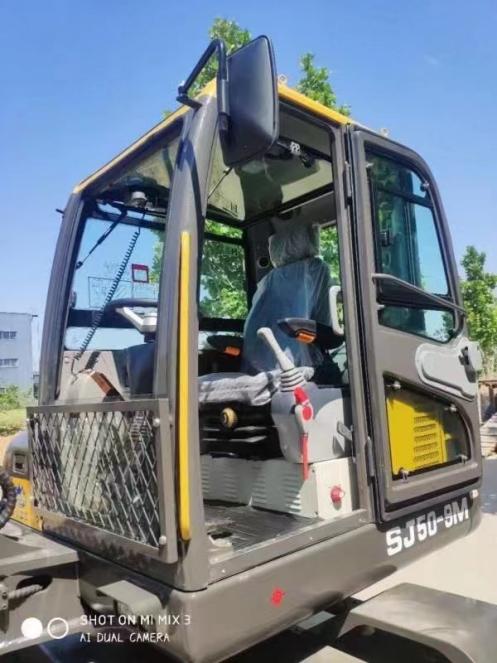

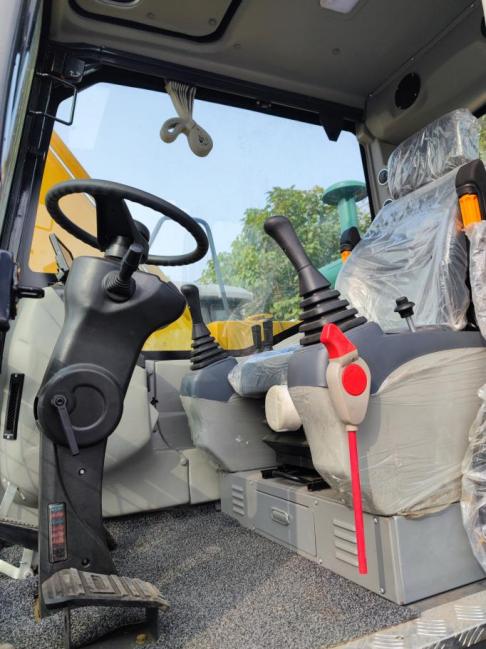

 Panoramic Cab |  Intelligent Control System |  Reinforced Design with High-Manganese Steel Throughout |

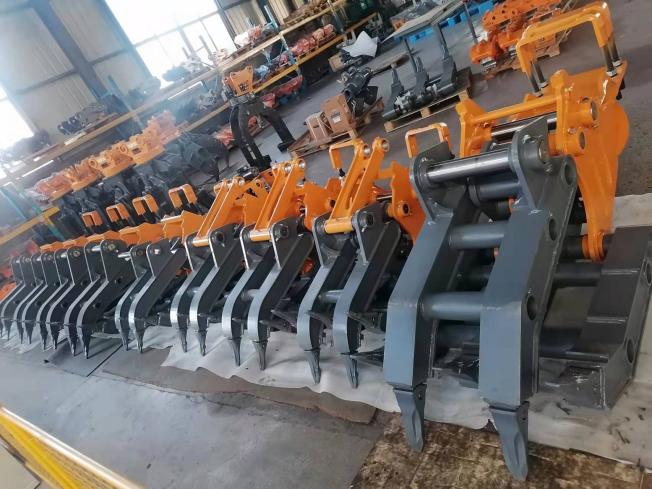

Optional Accessories Showcase:

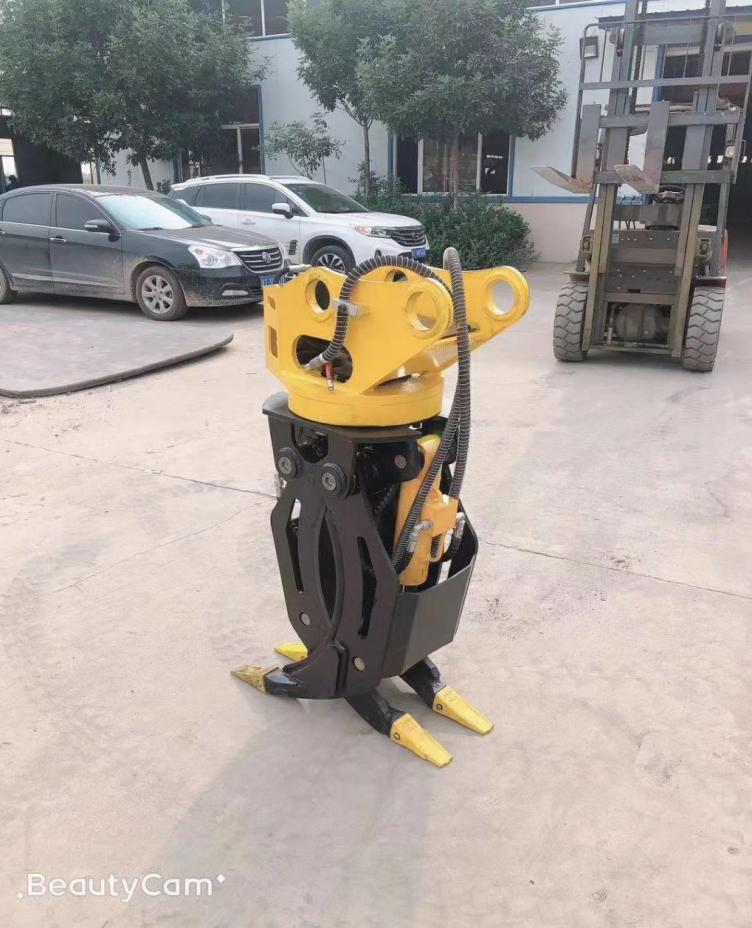

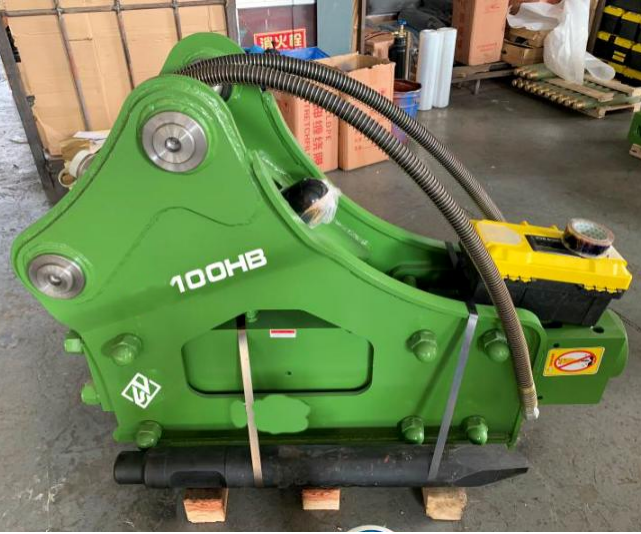

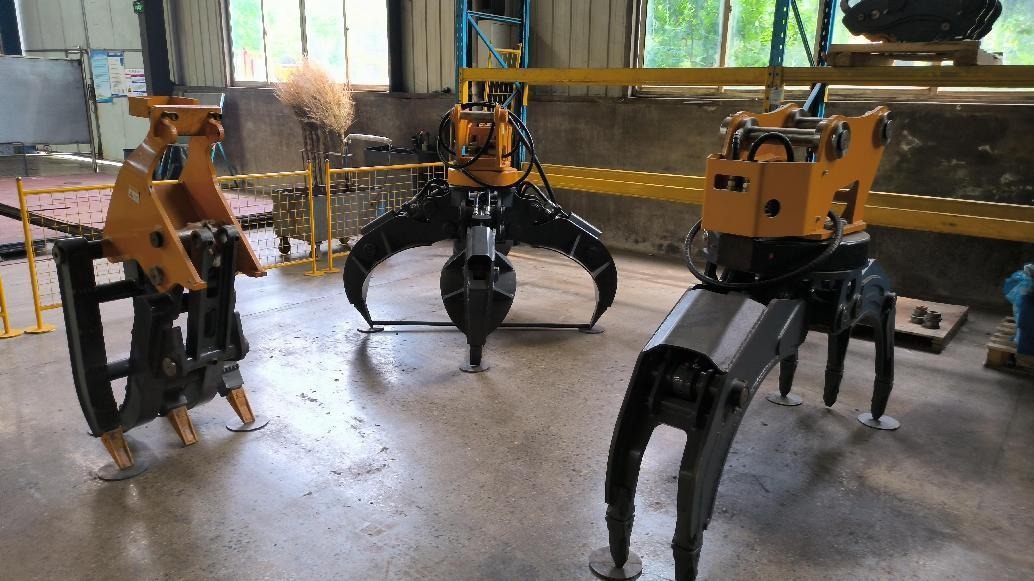

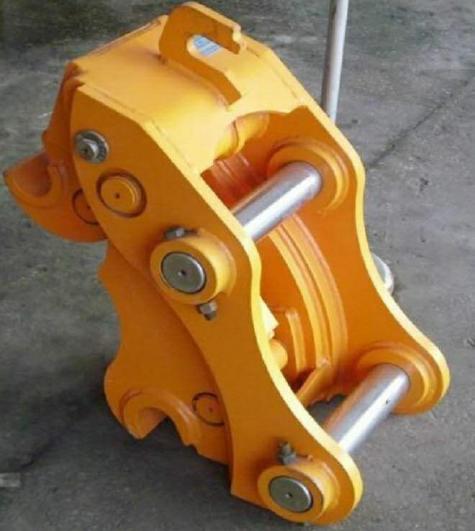

 Hydraulic Quick Coupler |  Hydraulic Breaker |  Rotating Log Grapple |

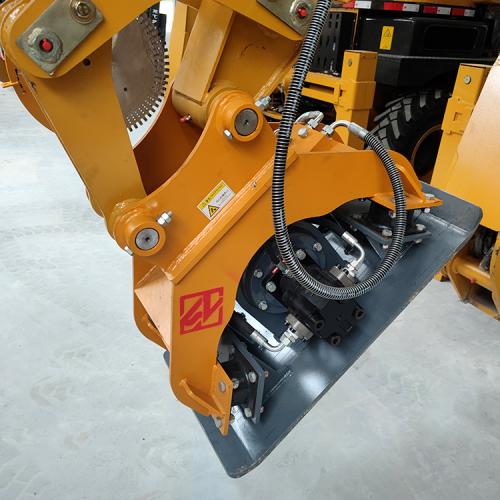

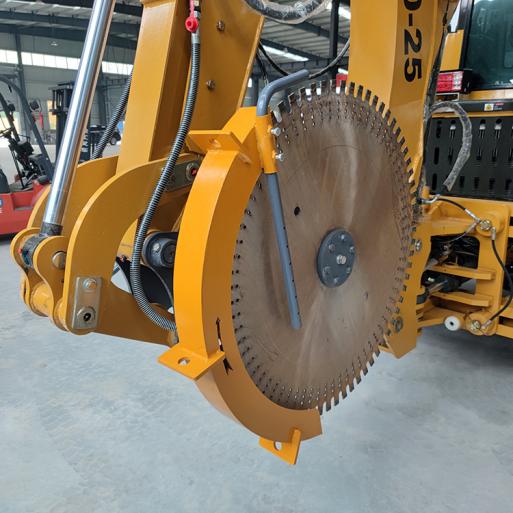

 Four-Jaw Stone Grab |  Asphalt Cutter |  Hydraulic Compactor |

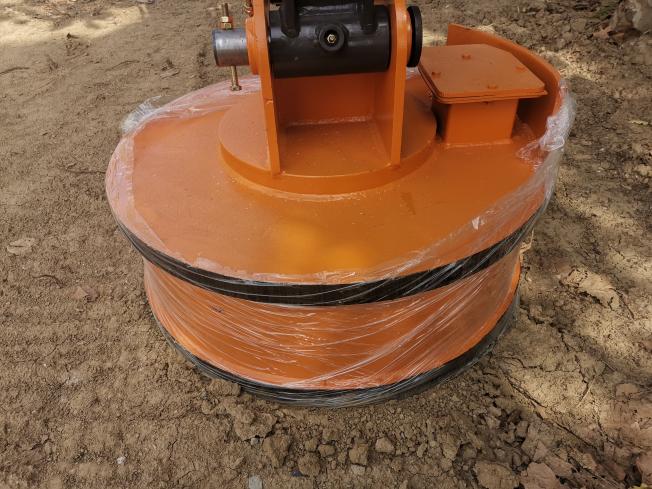

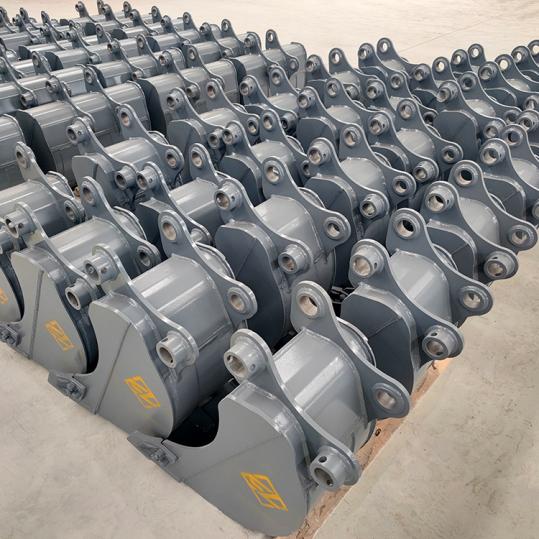

 Small Excavator Bucket |  Rotating Pole Grab |  Electric Lifting Magnet |
Additionally, various specialized auxiliary accessories can be installed. Sturdy and durable, they are available upon inquiry.

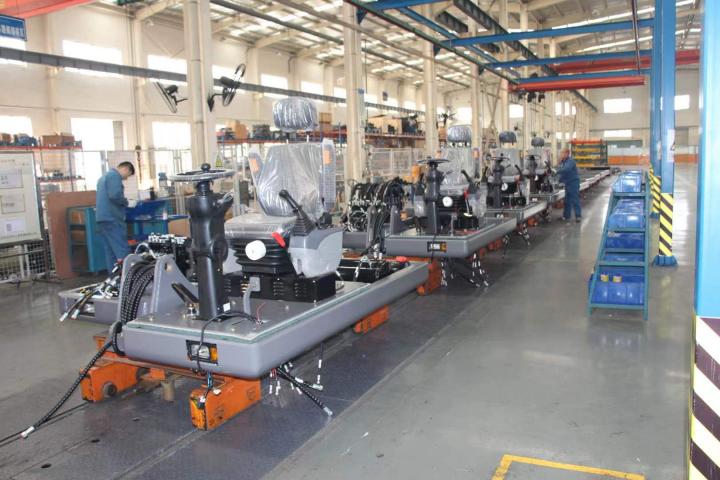

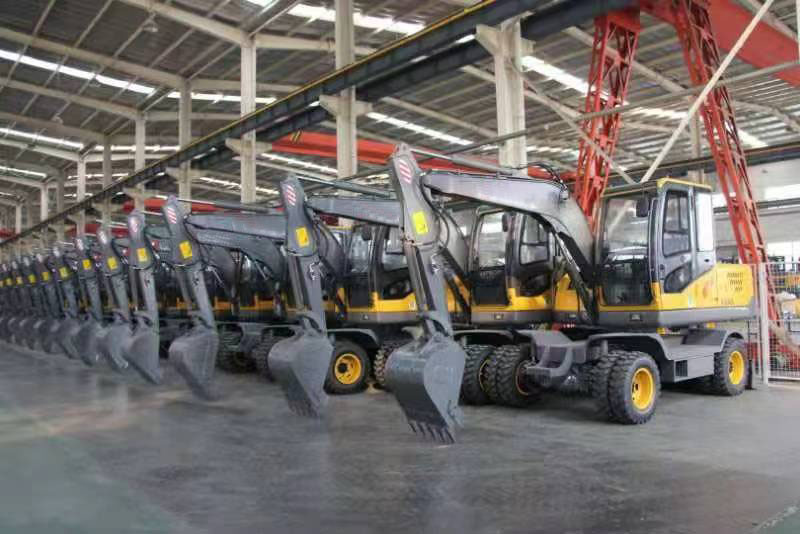

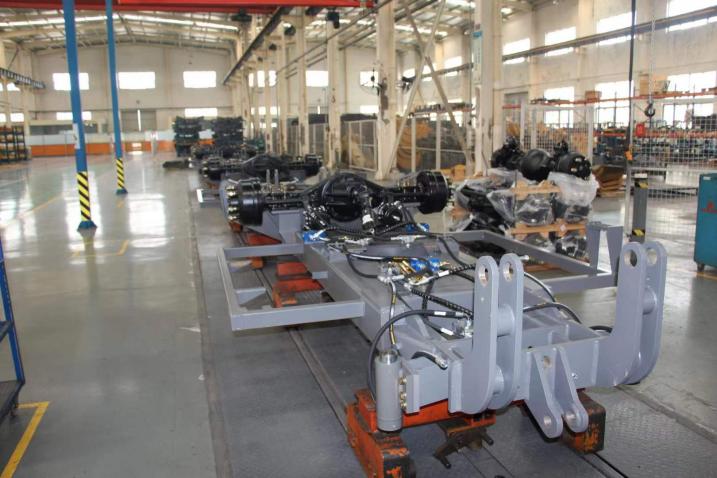

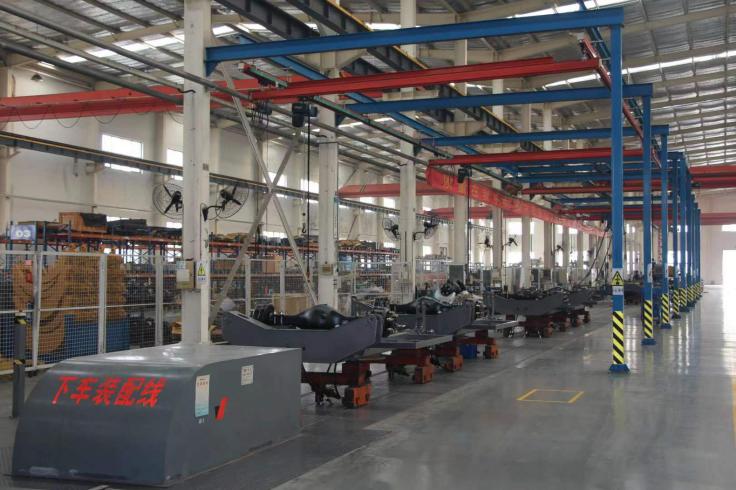

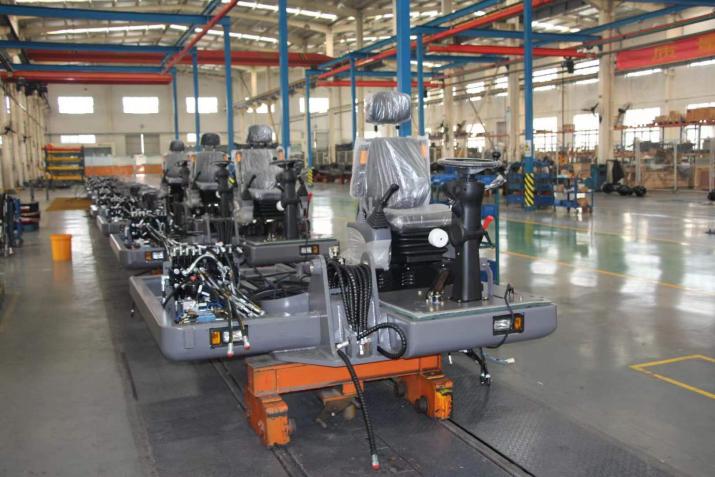

Workshop Production Line
 |  |
 |  |
 | |

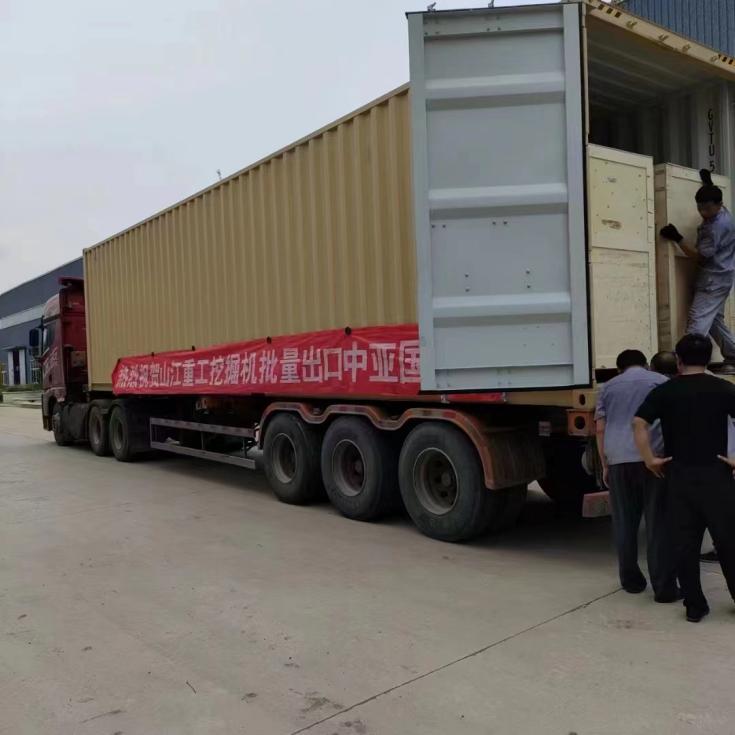

Export Business
 |  |
 |  |
 | |

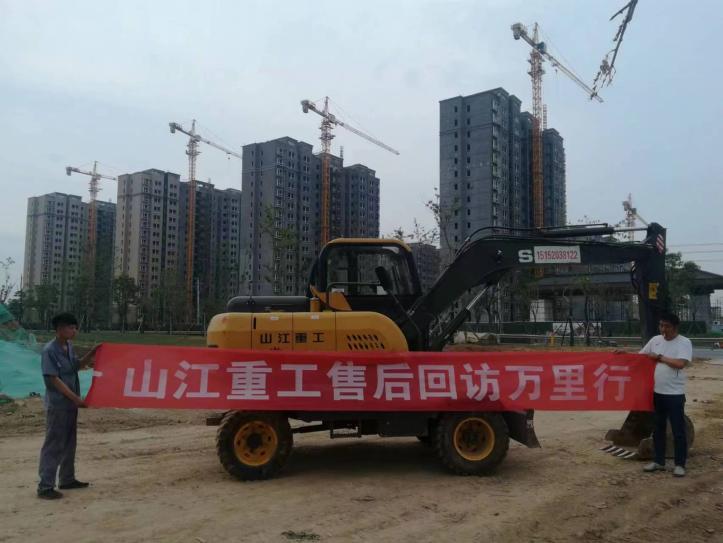

After-Sales Service
 |  |
 |  |
 | |
Company Profile:
Shanjiang Heavy Industry is a specialized manufacturer dedicated to the R&D, production, and manufacturing of road construction machinery—including wheeled excavators (4–21 tons), crawler excavators (1–40 tons), wheel loaders, backhoe loaders, motor graders, and road rollers—as well as their accompanying auxiliary attachments. With 15 years of experience in R&D, manufacturing, and exporting, our products have been shipped to over 30 countries and regions across Central Asia, Africa, Southeast Asia, South Asia, South America, the Middle East, and Europe, earning unanimous recognition and acclaim from our customers.
Leveraging professional automated production lines and a comprehensive management system, we are committed to providing you with high-quality products that are both reliable and stable in performance.
