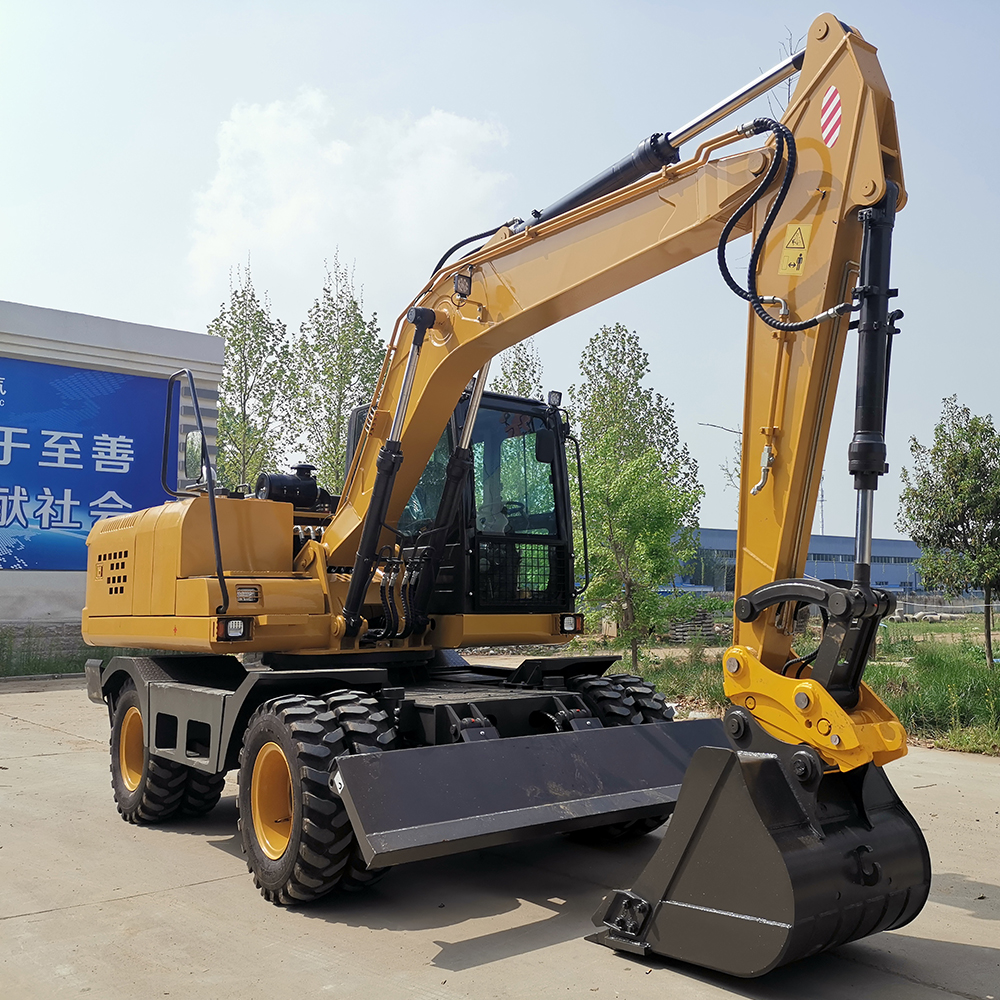

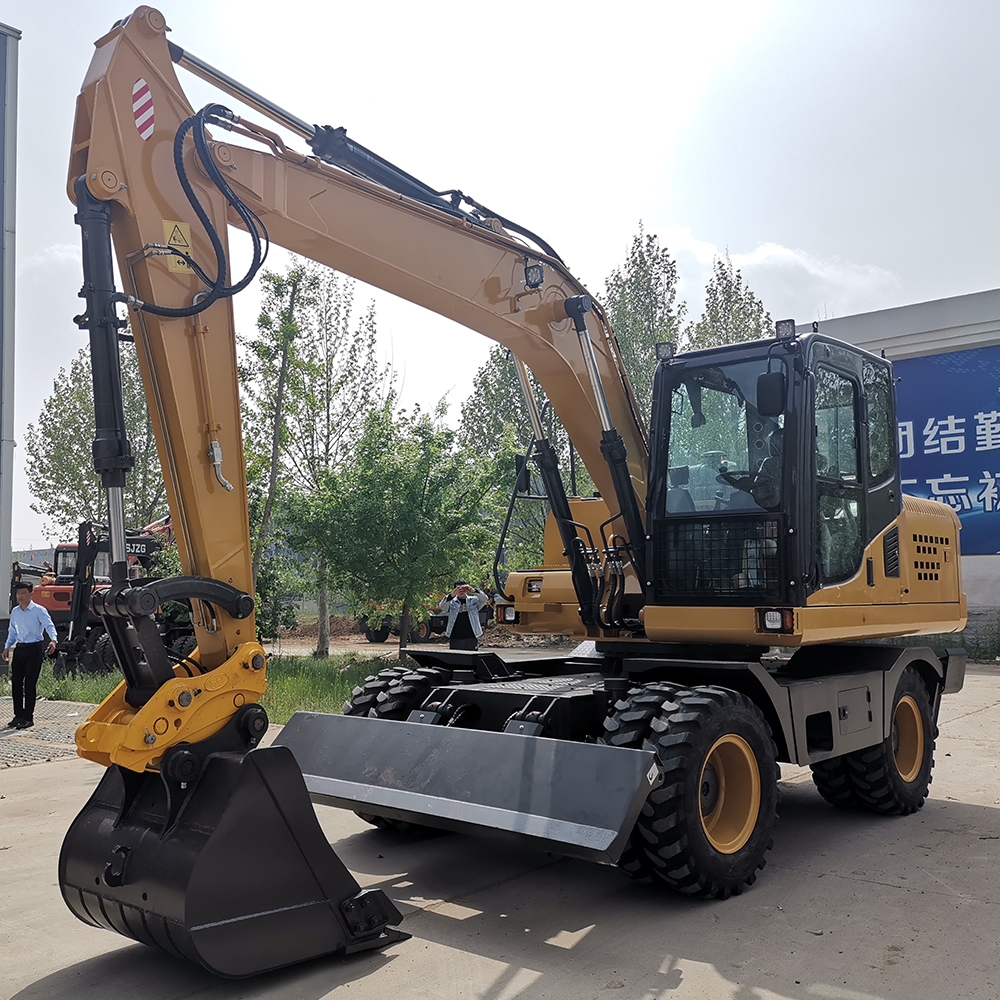

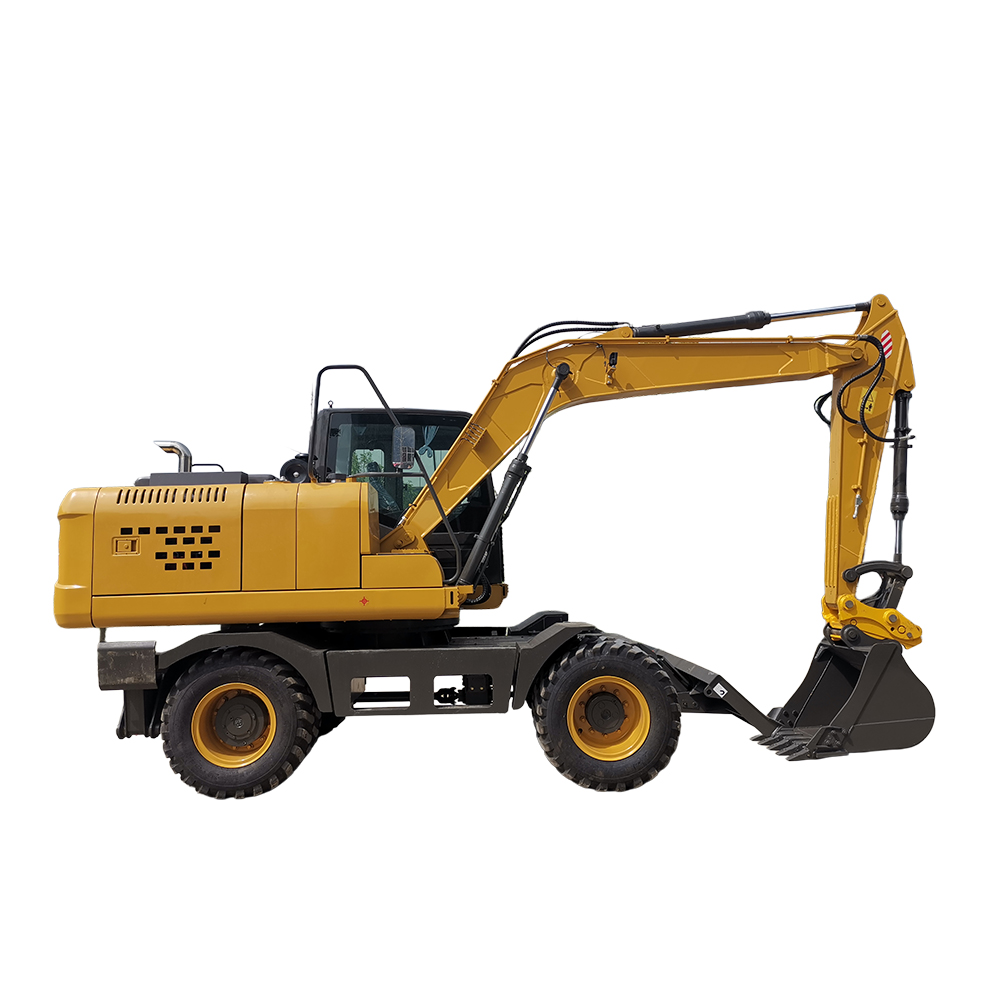

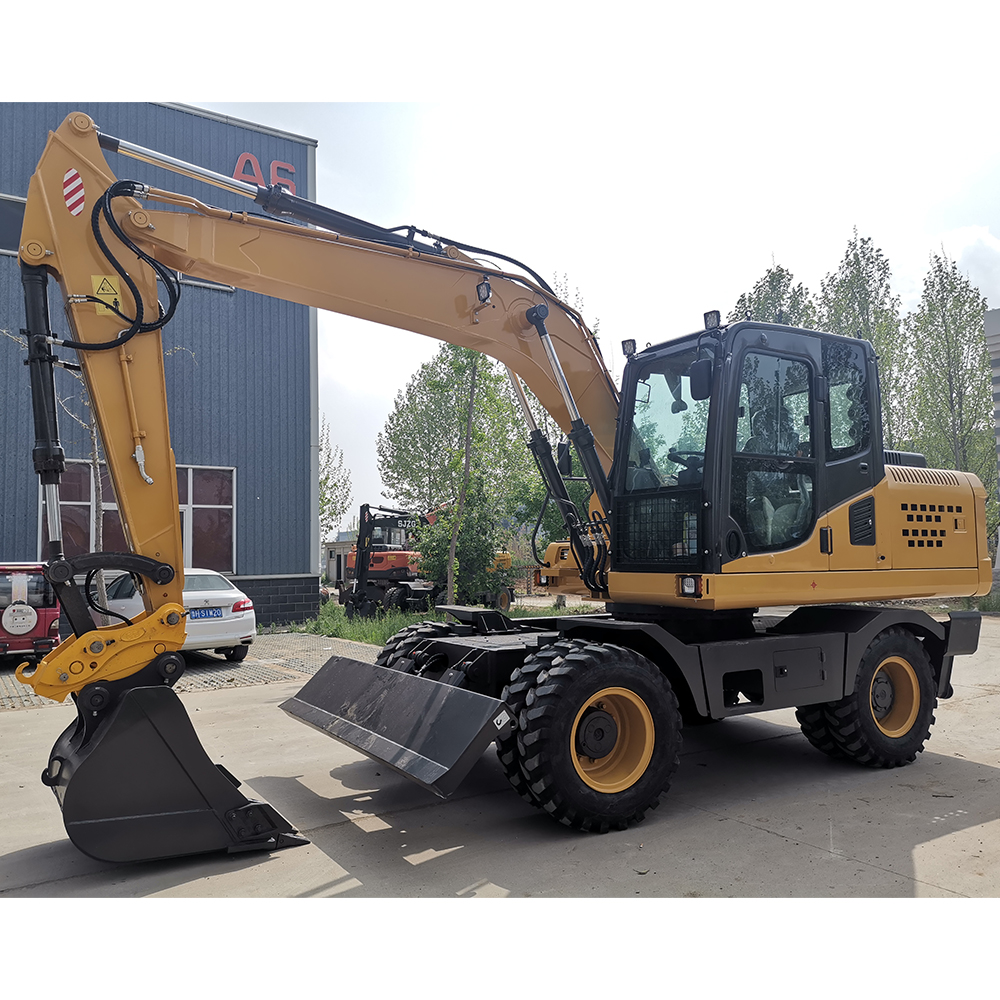

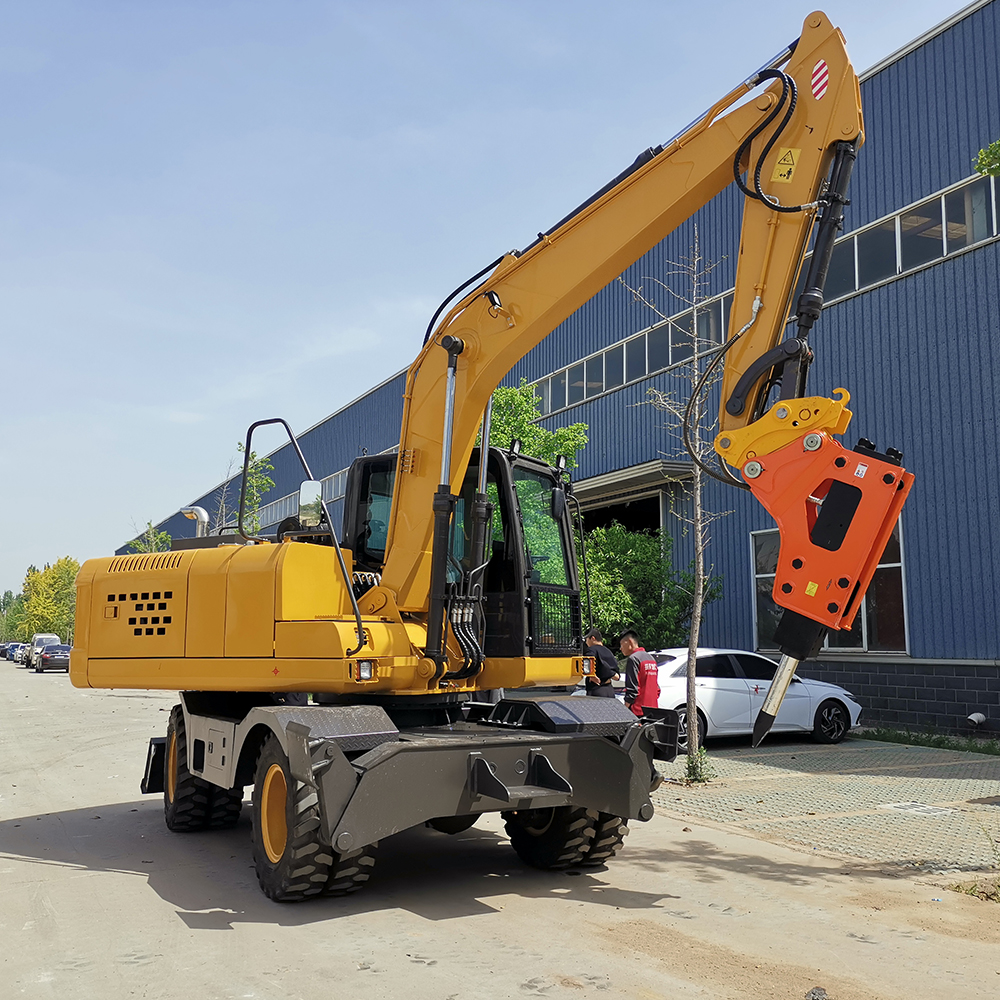

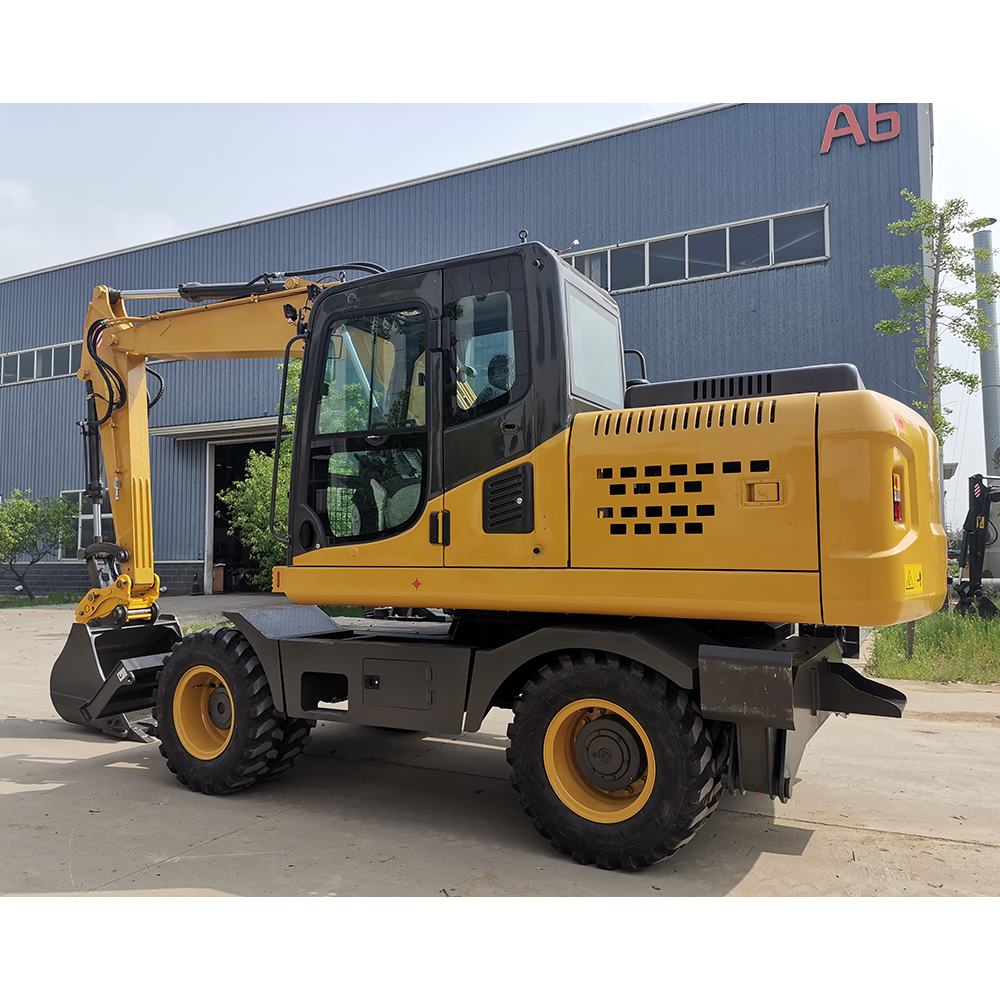

SJ150-9M Hydraulic Excavator: Main Technical Specifications | ||
1 | Model | SJ150-9M |
2 | Volume of Bucket | 0.6m³ |
3 | Engine model | Cummins China III |
4 | Power | 97Kw |
5 | Fuel trank | 250L |
6 | Travel speed | 28Km/h |
7 | Swing speed | 13r/min |
8 | Bucket digging force | 123KN |
9 | Hydraulic pump model | Kawasaki Pump |
10 | Maximum flow | 2x126+53L/min |
11 | Pressure | 31.5Mpa |
12 | Hydraulic oil tank | 220L |
13 | A—Overall length | 7455mm |
14 | B—Overall width | 2550mm |
15 | C—Machine height(Boom head) | 3050mm |
16 | D—Total height(to operators cabtop) | 3150mm |
17 | E—Ground clear ance(bob-weight) | 1070mm |
18 | F—Min.ground clearance | 250mm |
19 | G—Rear—end seing radium | 2400mm |
20 | K—Table width | 2500mm |
21 | L—Max.digging height | 8955mm |
22 | M—Max.dumping height | 6355mm |
23 | N—Max.digging depth | 5010mm |
24 | O—Max.digging depth | 4950mm |
25 | P—Max.digging reach | 8030mm |
26 | Q—The largest mining in stopping distance | 5749mm |
27 | R—Min.swing radius | 2500mm |
28 | Arm length | 2450mm |
29 | Boom length | 4500mm |
30 | Gradeability) | ≥70% |
