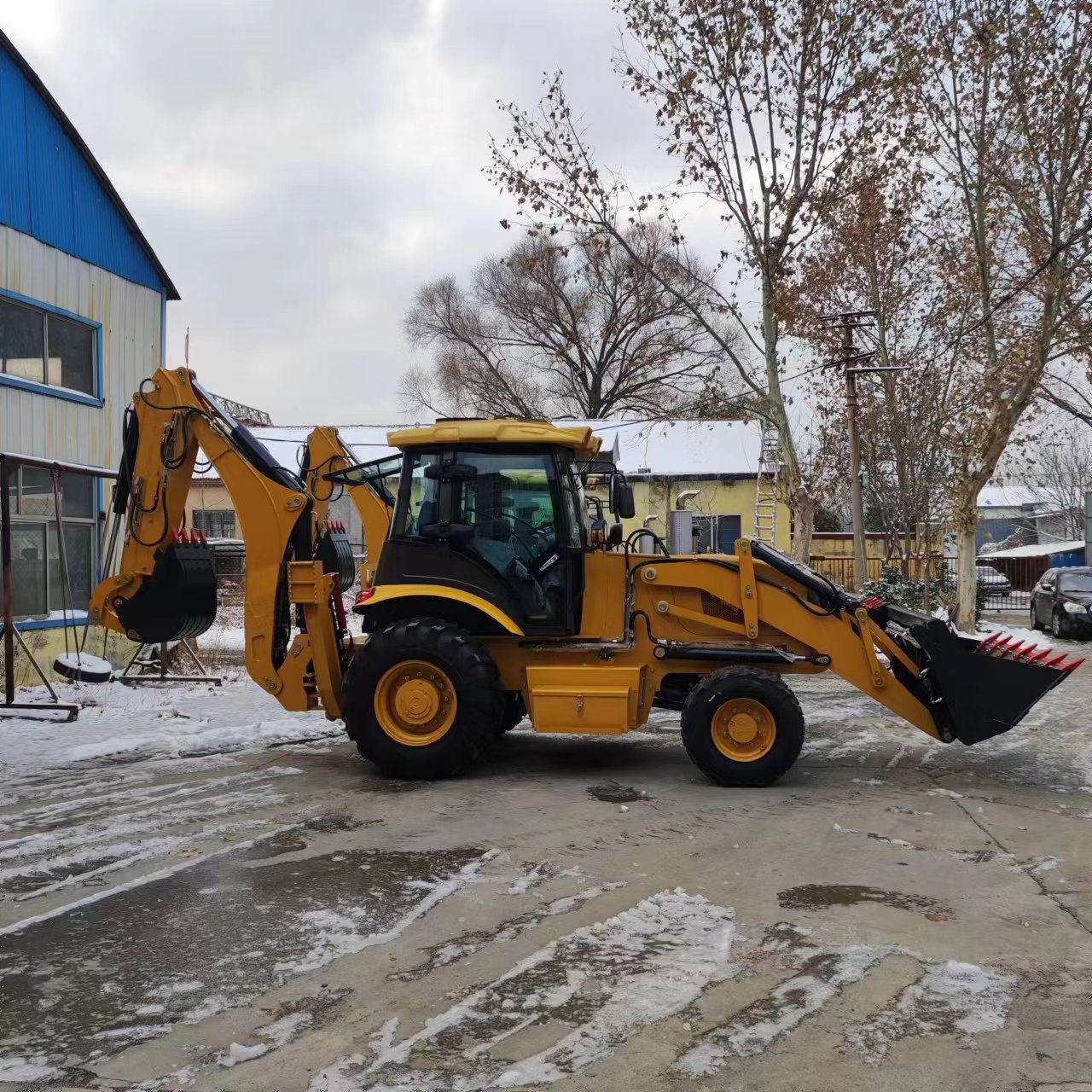

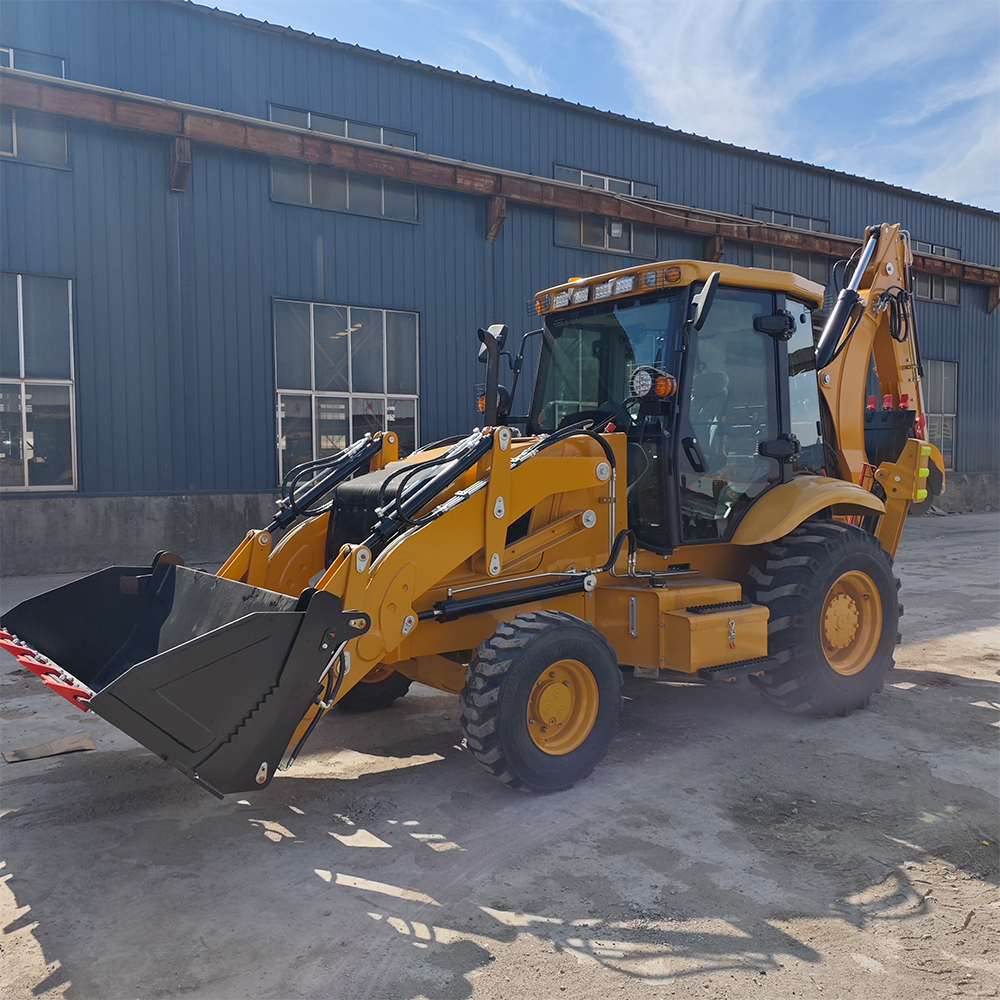

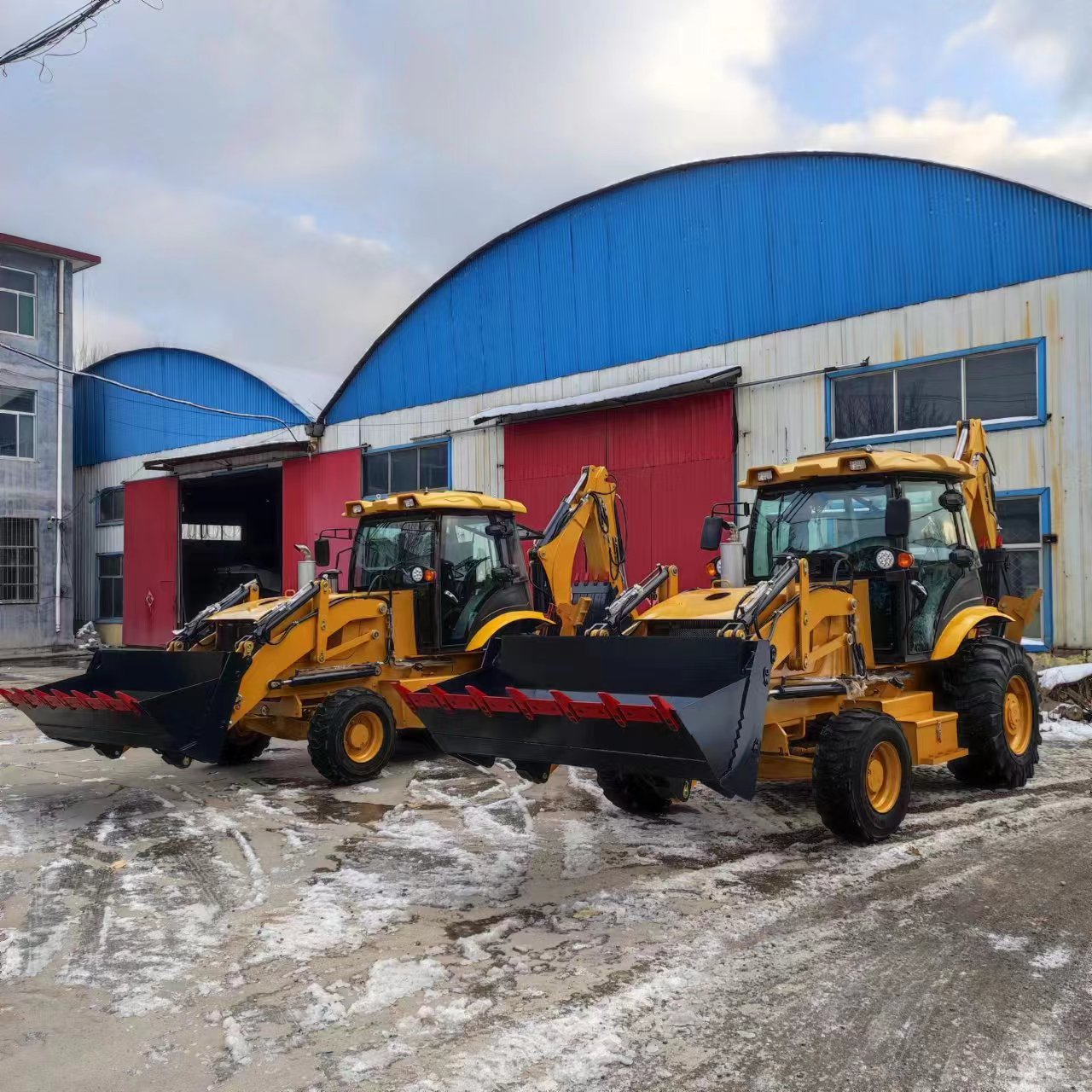

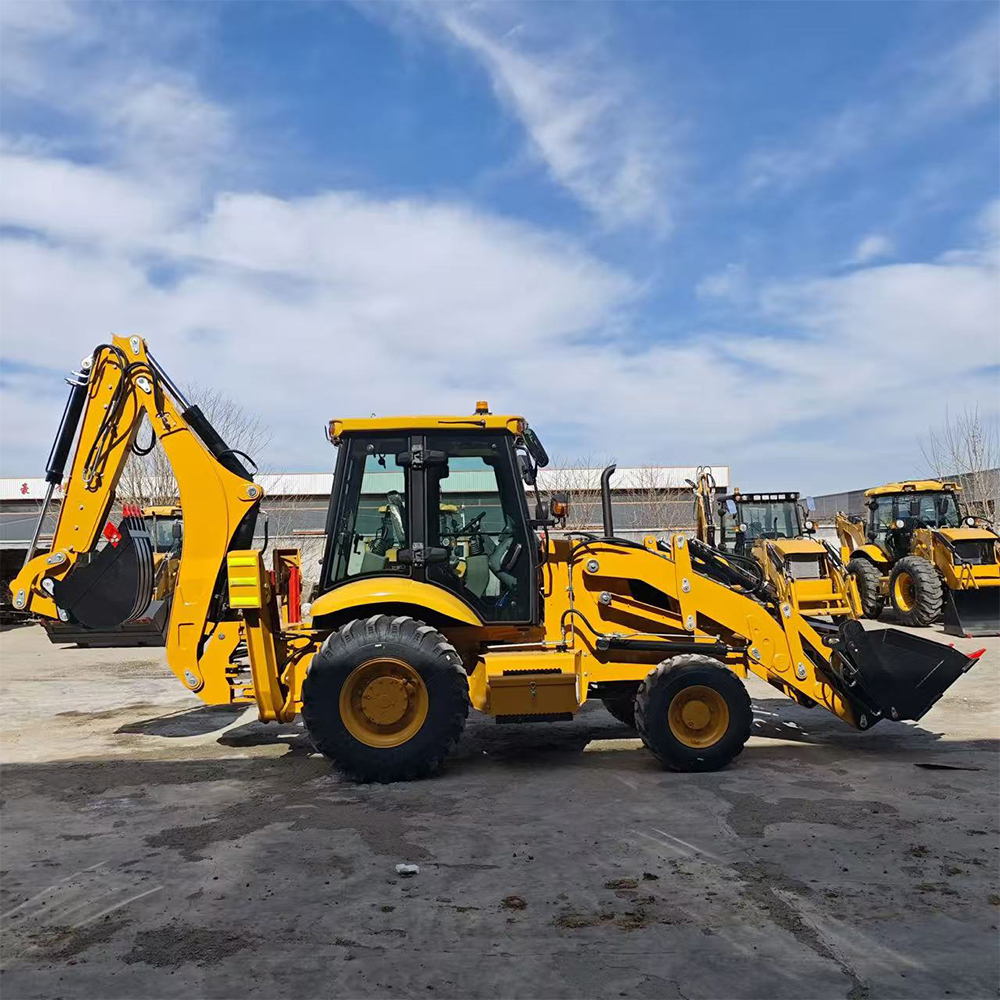

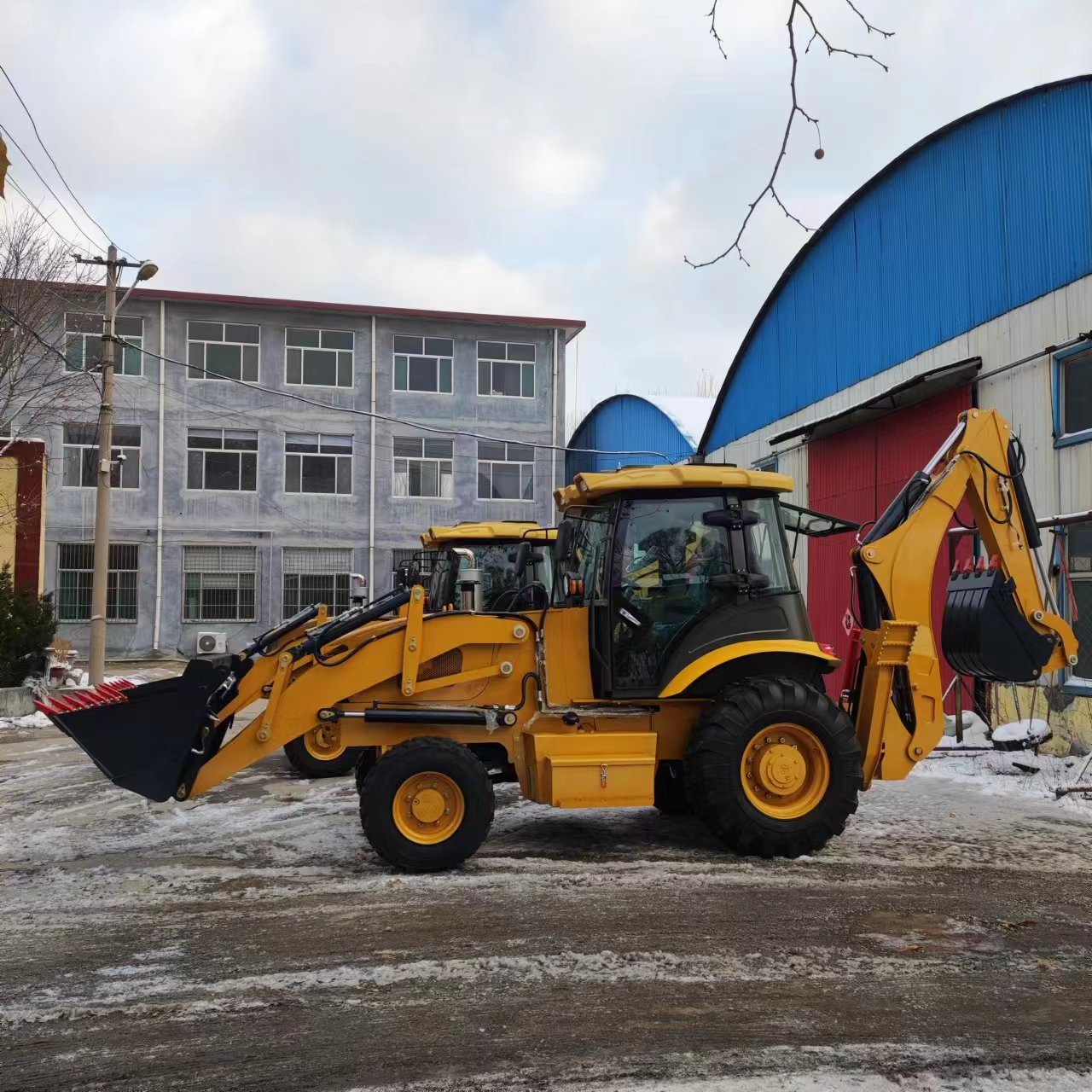

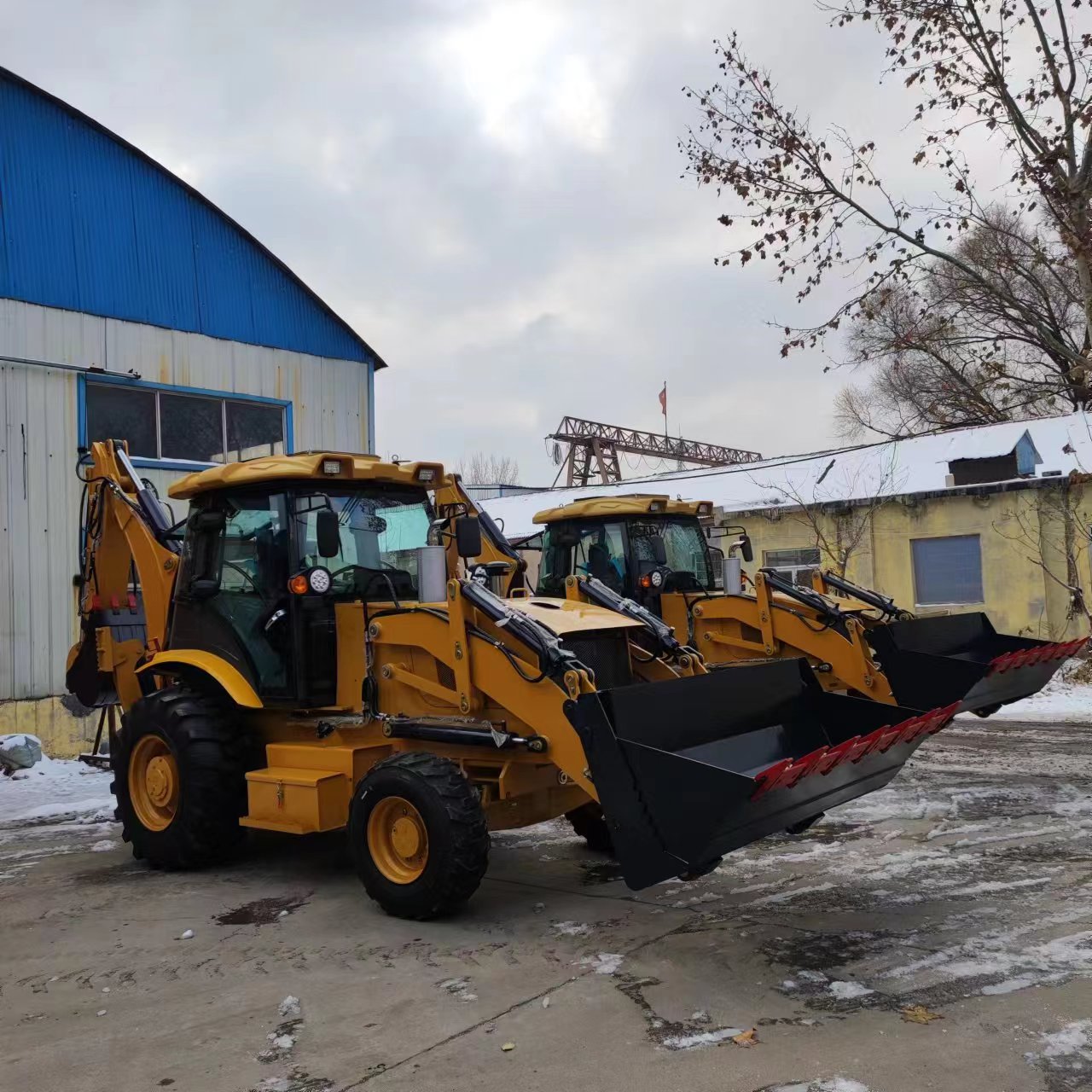

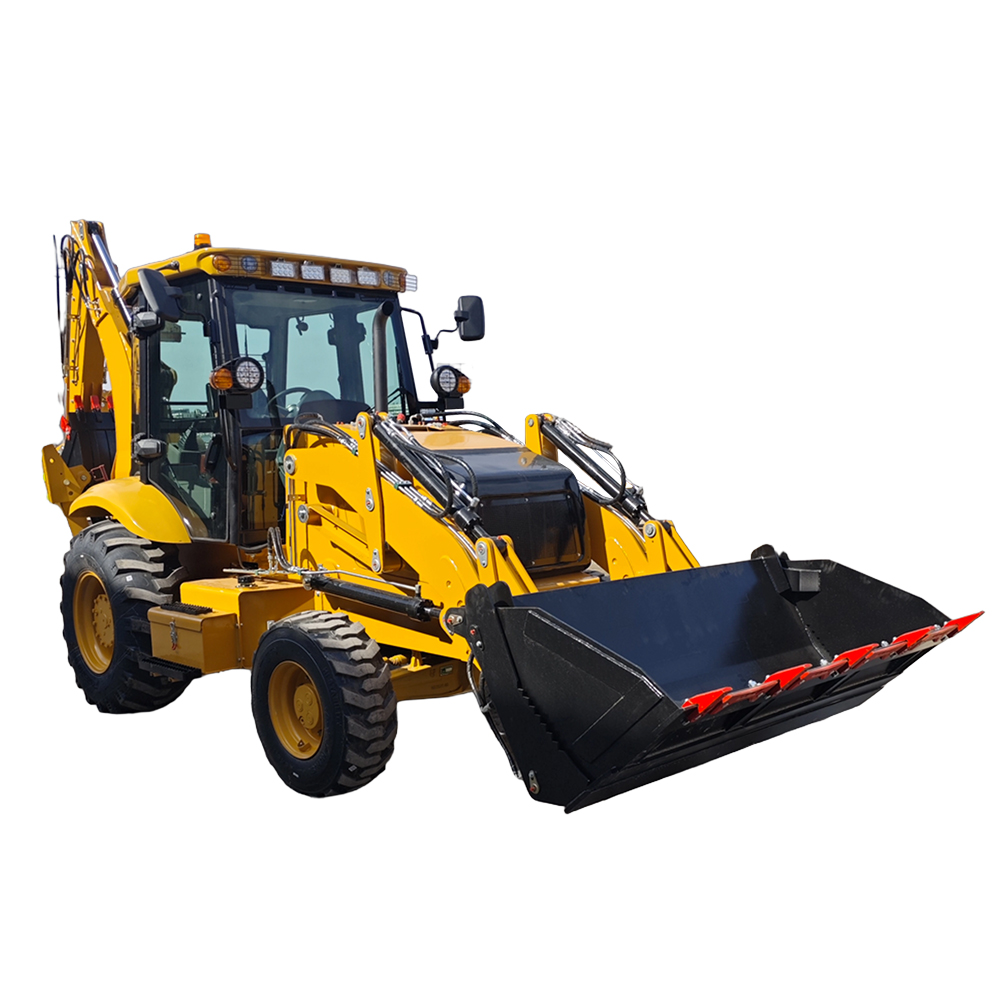

The main structural features and advanced technology used in the SJ388 Backhoe loader
Main Feature
1.The use of high-reliability hydraulic torque converter and Gearbox to provide super power, aggravated the smooth and high reliability of the dedicated bridge walking
2.Combine the excavator and the loader into one, and one machine can do more. Fully equipped with all the functions of small excavators and loaders, it is more suitable for operating in a narrow space, convenient and flexible, and working efficiency is increased by more than 30 %.
3.Mining, loading function all lead control, light and flexible, high operating efficiency.
4.Humanized design of rotating vibration absorber seat, fully steel-molded glass cab, wider vision, more comfortable driving.
5.Excavate the lateral sliding mechanism device to make the excavation operation more extensive and more efficient.
6.The design of the front flip cover greatly improves the maintenance of the entire machine.
7.A variety of accessories can be selected to complete a variety of construction operations. For use in municipal administration, construction, water Conservancy, highways, tap water, power supply, gardens and other departments, can be engaged in agricultural construction, pipeline laying, cable laying, landscaping and other operations
The Main Performance Parameter of Backhoe Loader SJ388 | ||||
Overall Operating Weight | 8200KG | Final Reducer | Single Stage Final Reducer | |
Transport Dimension | Rated Loader of Axle | 8/18.5t | ||
mm L*W*H | 6120×2410×3763 | |||
cab to ground mm | 2900mm | Transmission System | ||
Wheel base | 2248mm | Torque Converter | ||
Min. Ground Clearance | 300mm | Model | YJ265 | |
Bucket Capacity | 1.2m3 | Type | Single-stage Three Elements | |
Breakout Force | 38KN | Max. Efficiency | 84.4% | |
Loading Lifting Capacity | 2500KG | Gearbox | ||
Bucket Dumping Height | 2700mm | Type | Fixed Shaft Power Transmission | |
Bucket Dumping Distance | 925mm | Oil Pressure of Clutch | 1373Kpa—1569 Kpa | |
Digging Depth | 52mm | Gears | Two Gears Ahead, Two Gears Astern | |
Backhoe Capacity | 0.5 m3 | Max.Speed | 28Km/h | |
Max. Digging Depth | 4082/4500mm | Tyre | ||
Swing Angle of Excavator Grab | 190o | Model | 14-17.5/19.5L-24 | |
Max. Pulling Force | 39KN | Pressure of Front wheel | 0.55Mpa | |
Engine | Pressure of Back Wheel | 0.223Mpa | ||
Model | Weichai | Brake System | ||
Type | In Line Direct injection Four-Stroke and Injection Combustion Chamber | Emergency Brake | Operation Power Implementing brake | |
气缸数-内径*行程Cylinder-Inside Diameter*Stroke | 4-102×132 | Manual Operation Power Terminating Brake | ||
Rated Power | 70KW | Service Brake | Air Over Oil Caliper Brake | |
Rated Speed | 2200r/min | External Type | ||
Min. Fuel Consumption | ≤230g/km.h | Self-regulation | ||
Max.Torque | ≥400N.M | Self-balance | ||
Displacement | 3.8L | Hydraulic System | ||
Steering System | Digging Power of Excavator Grab | 46.5KN | ||
Model of Steering Device | BZZ5-250 | Digging Power of Dipper | 44KN | |
Steering Angle | ±36 o | Bucket Lifting Time | 6．8S | |
Min. turning radius | 6581mm | Bucket Lowering Time | 3.1S | |
Pressure of the system | 16Mpa | Bucket Discharge Time | 2.0S | |
Axle | ||||
Manufacturer | Feicheng | Main Transmission Type | Double Reduction | |
