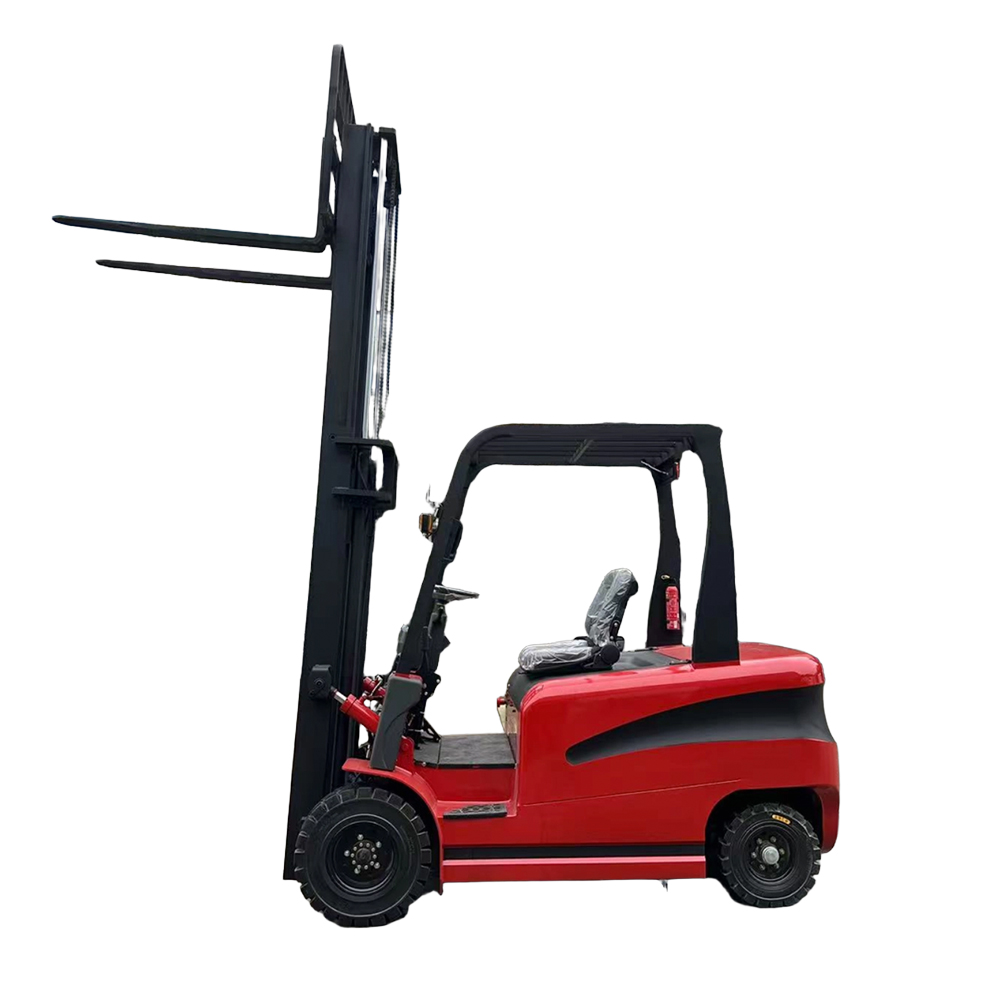

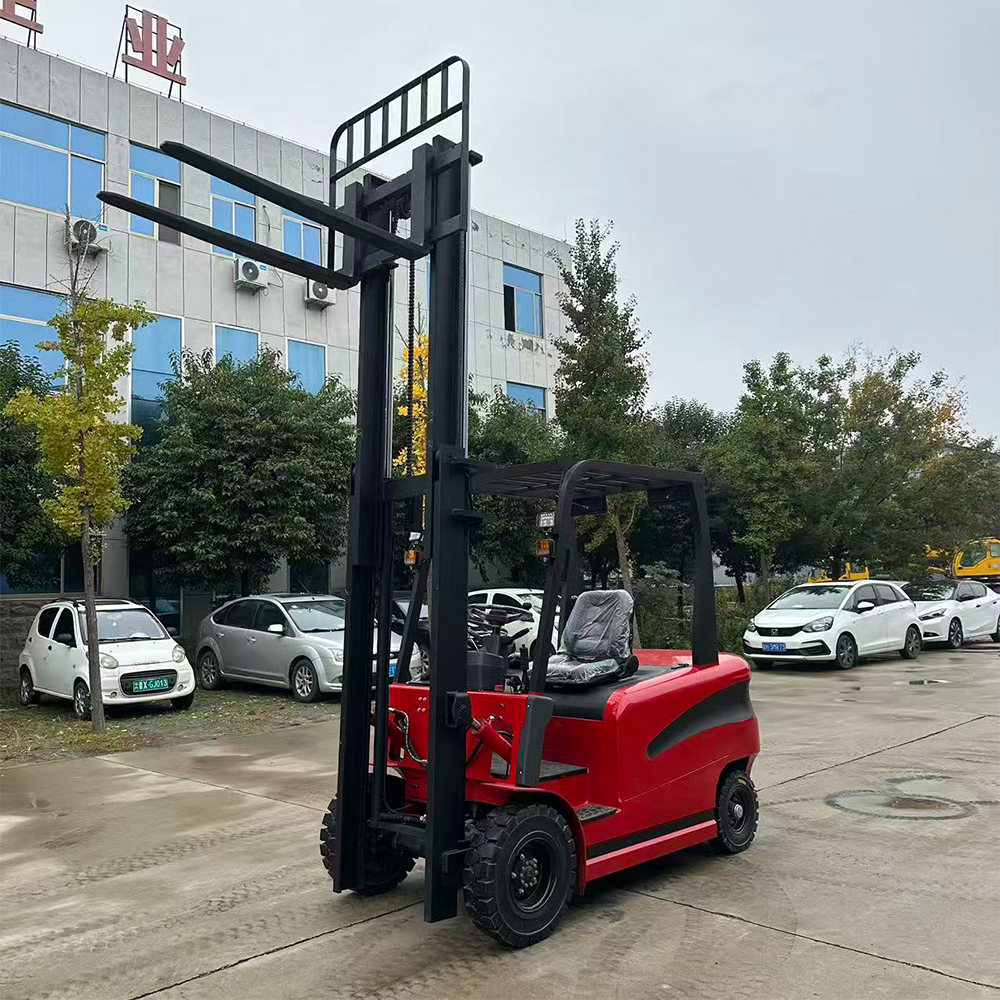

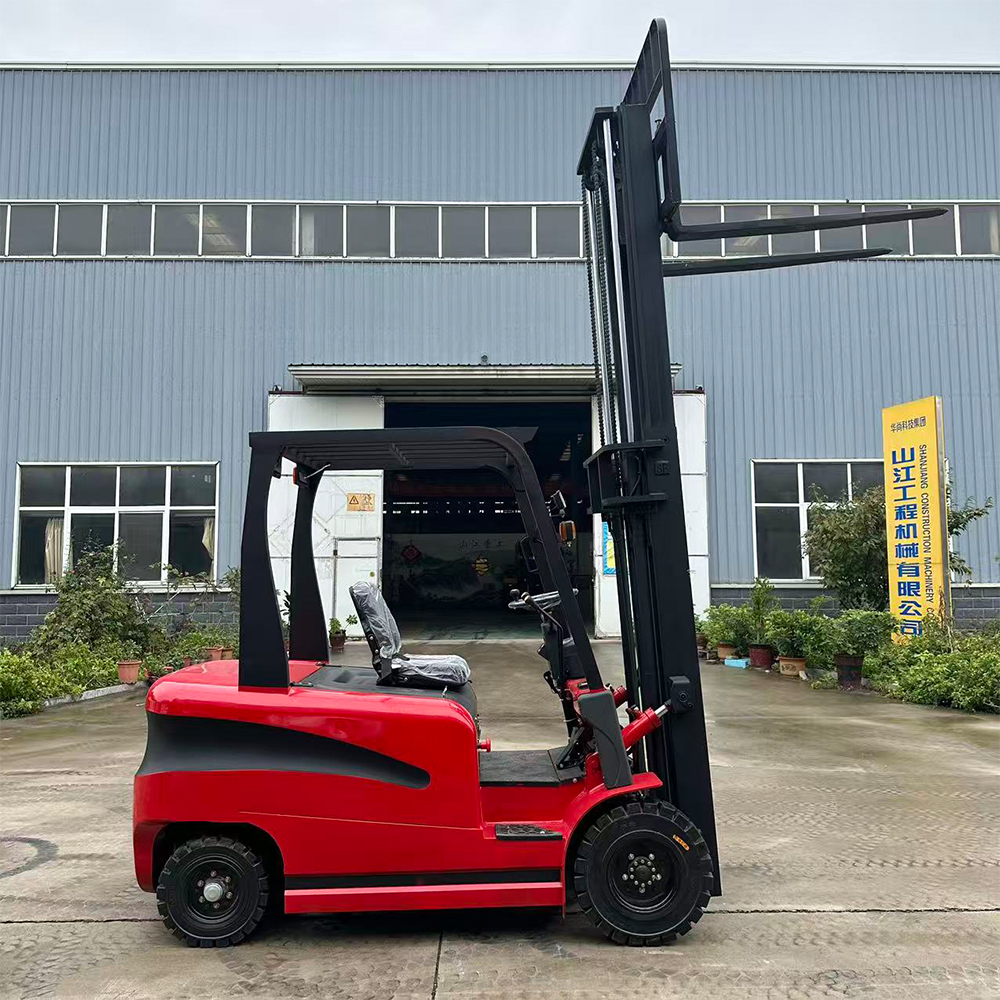

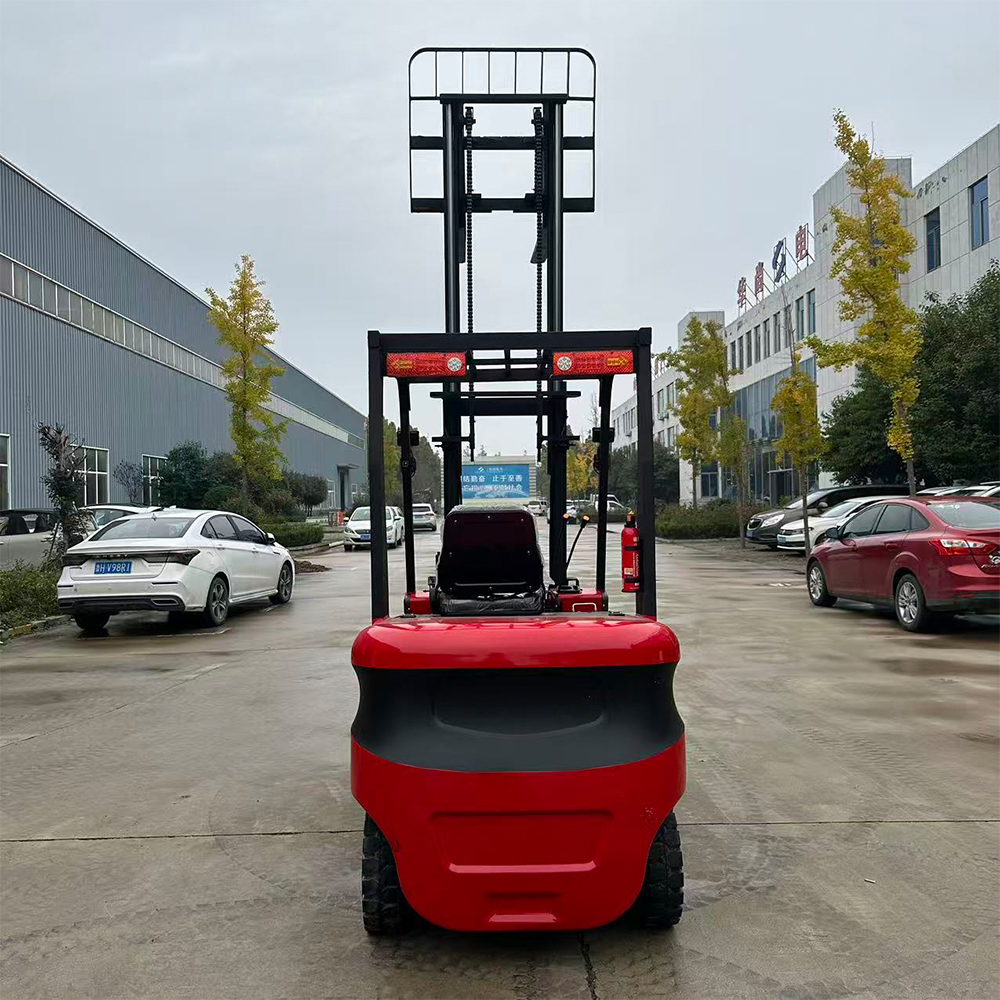

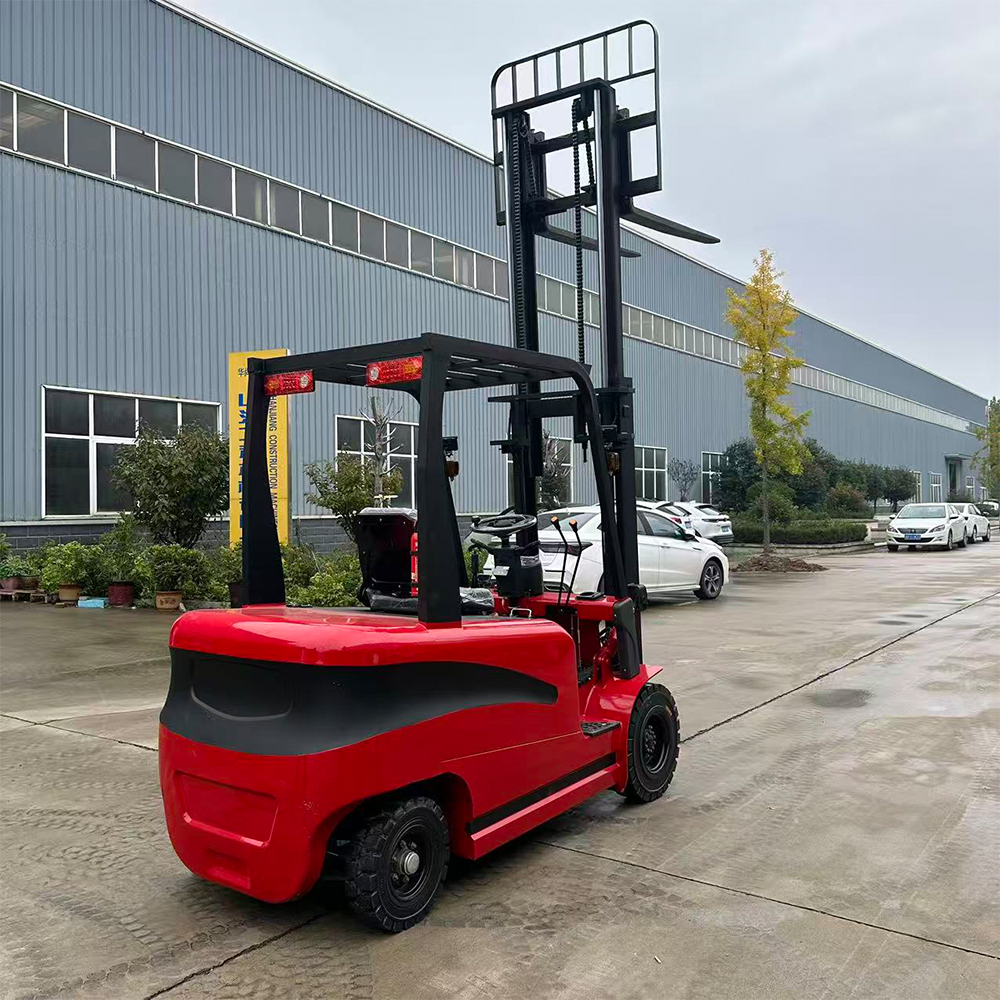

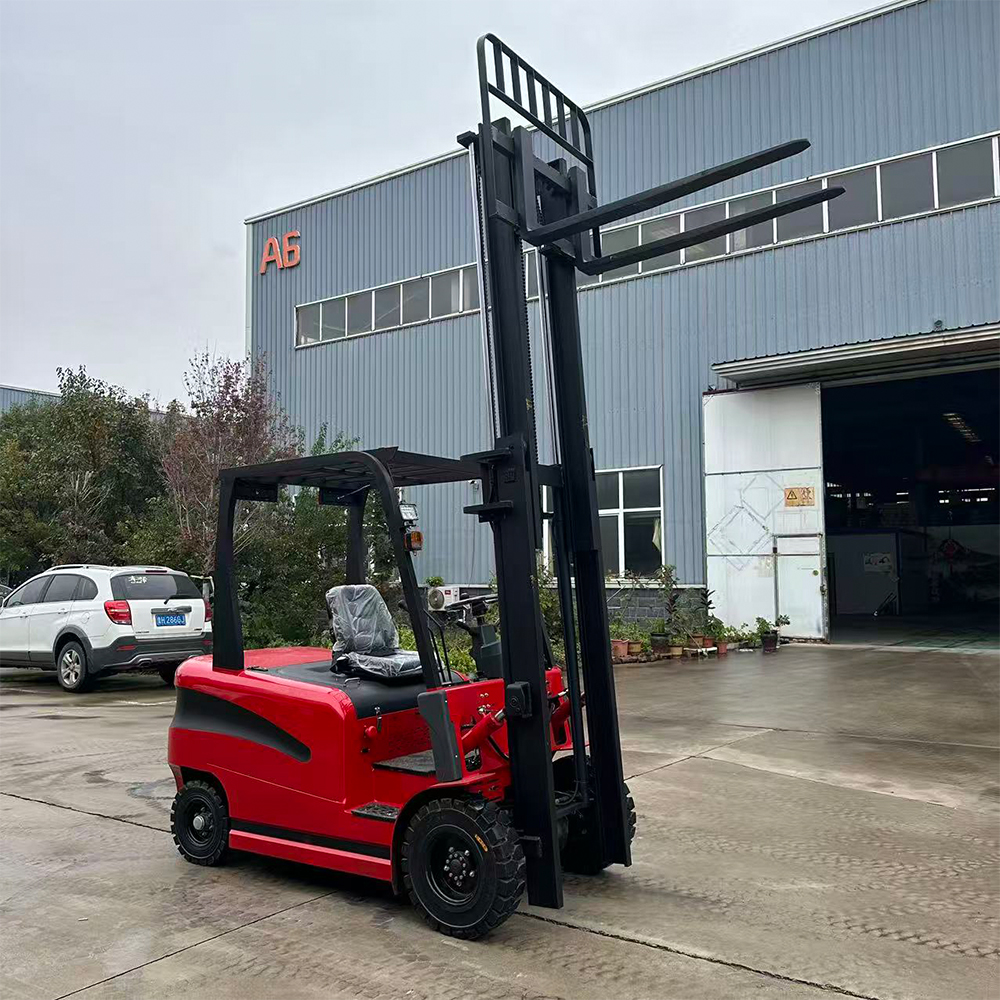

Shanjiang 3-Ton Specifications Sheet | |||||||
Vehicle Parameters | |||||||
Vehicle Specifications | Max. Lifting Capacity | 3000 kg (Strictly no overloading) | |||||
Body Dimensions | 2.5 m × 1.2 m × 2.15 m (Excluding fork length) | ||||||
Curb Weight | 3300kg | ||||||
Lifting Height | 3m | ||||||
Body Material | Reinforced steel plate body (Choice of color and model available) | ||||||
Drive Motor | 5kW AC | ||||||
Electrical System | Lift Motor | 4kW AC | |||||
Output Voltage | 60V | ||||||
Charging Voltage | 220V | ||||||
Number of Batteries | 10units (Lead-acid batteries) | ||||||
Battery Capacity | 83ah(Optional: 60 V / 150 Ah Lithium-ion battery) | ||||||
Operating Duration | 7–8 hours (Intermittent operation) | ||||||
Charging Time | 5–6 hours (6-stage intelligent charging with automatic shut-off) | ||||||
Lighting & Signals | Instrument panel, lighting system, electric horn, turn signals, etc. | ||||||
Drive Axle | 1:41 (100mm axle tube diameter) | ||||||
Chassis System | Tires | Front wheels: 6.50-10 (solid, wide-profile tires); Rear wheels: 5.00-8 (solid, wide-profile tires) [Mining-grade, wear-resistant tires] | |||||
Steering Axle | Reinforced Steering Axle with Dual Steel Plates | ||||||
Braking Method | Hydraulic braking system + oversized parking brake; Hill-start Assist, Hill Descent Control, and Electronic Retarder. | ||||||
Lifting Cylinder | Reinforced, sealed dual hydraulic cylinders (73 × 400 mm) [High-precision machining; wear-resistant sleeves]. | ||||||
Other Features | Fork Length | Standard 1.22-meter forks: wear-resistant, drop-forged, and integrally formed (optional lengths available). | |||||
Mast Material | Dual hydraulic cylinders (utilizing specialized 148-series forklift-grade structural steel). | ||||||
Steering Method | Hydraulic power steering (microcomputer-controlled; allows for simultaneous driving and lifting/lowering operations). | ||||||
Turning Radius | 90°Capable of turning in place. | ||||||
Gradeability | 15°-25° | ||||||
Complies with National Vehicle Registration Standards [Registrable] | Seat-off power cut-off; handbrake-activated power cut-off; password/card-swipe system access; explosion-proof valve; anti-layer-jumping protection. | ||||||
Included Accessories | Fire Extinguisher / Battery Charger | ||||||
