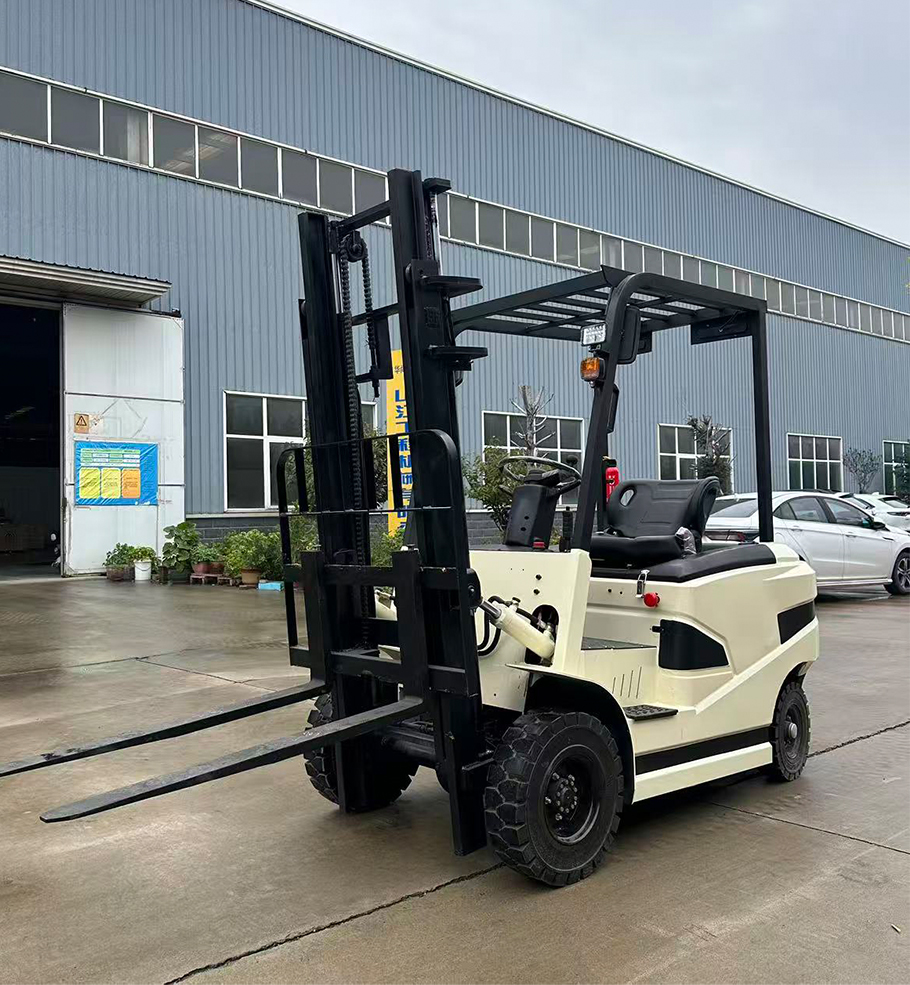

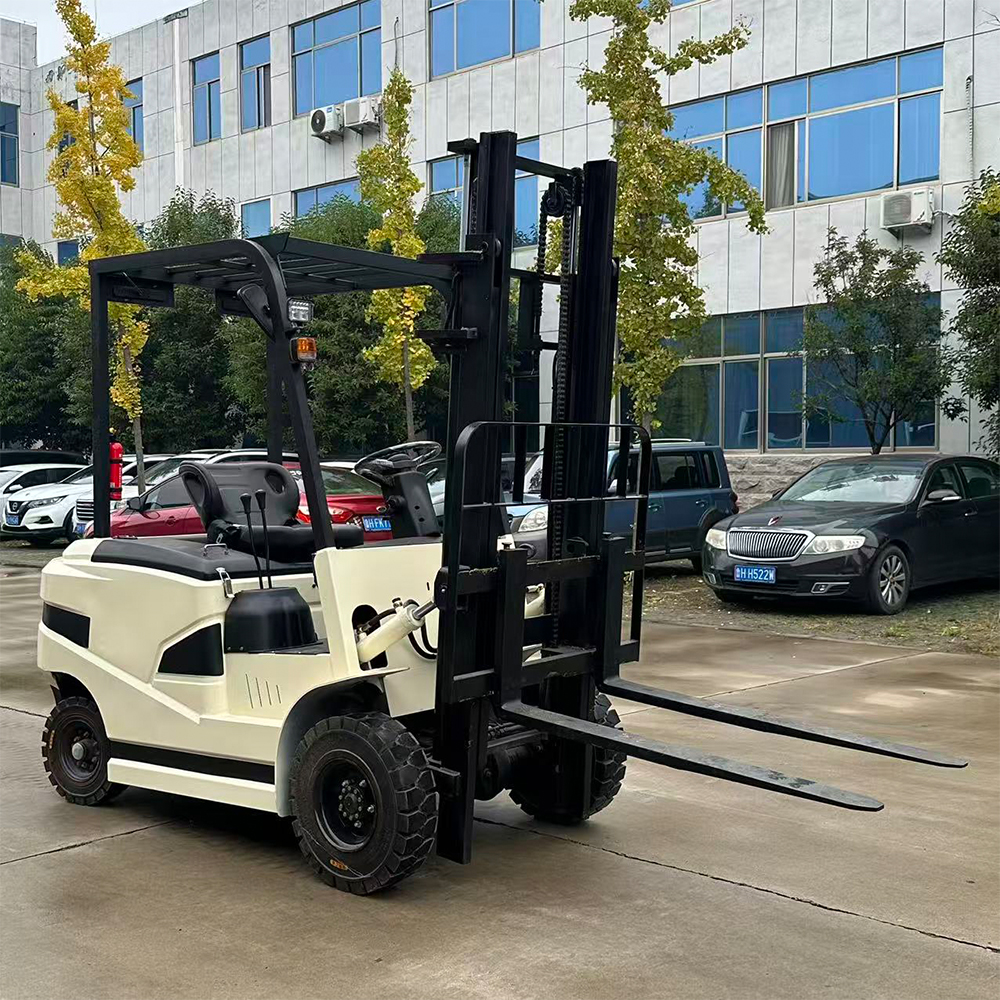

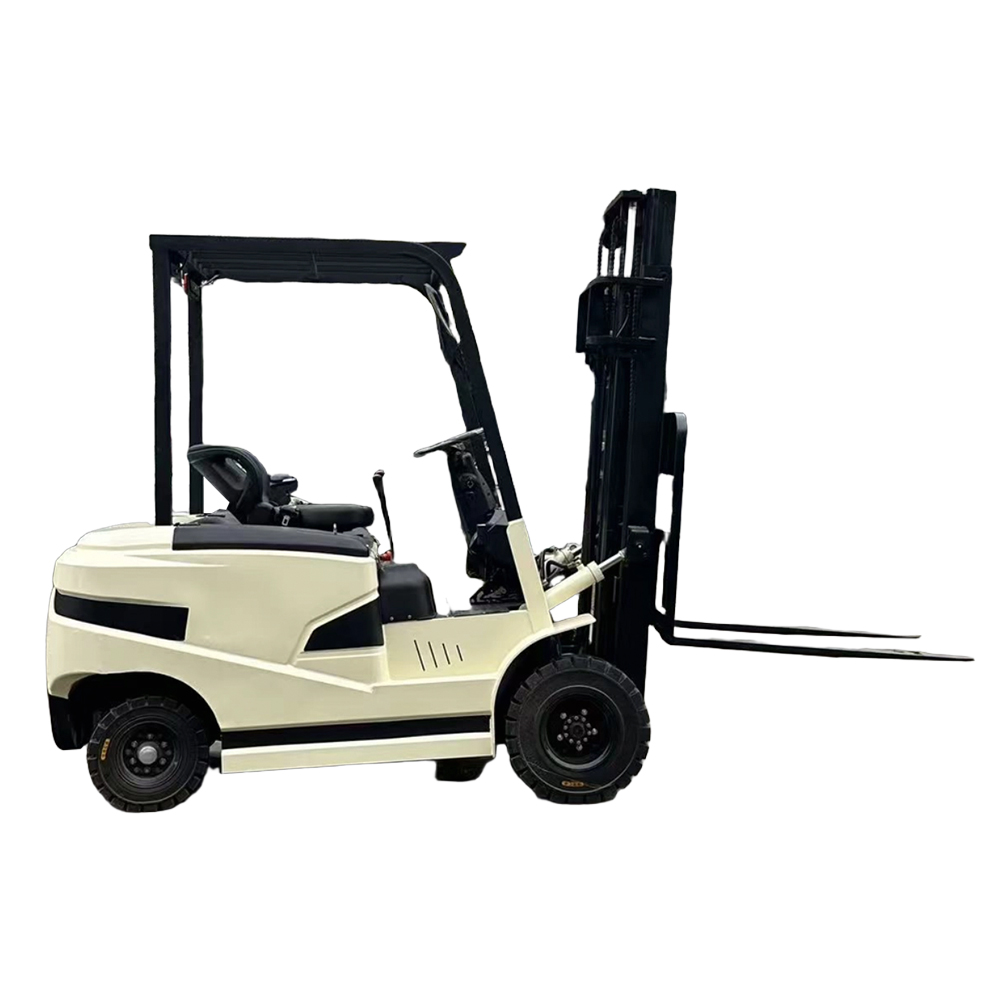

Shanjiang 3-ton configuration table | |||||||
Vehicle parameters | |||||||
Vehicle parameters | Maximum lifting weight | 3000kg | |||||
Body size | 2.5m*1.2m*2.15m | ||||||
Vehicle weight | 3300kg | ||||||
Lifting height | 3m | ||||||
Body material | Thickened steel plate body (color and model can be selected freely) | ||||||
Walking motor | 5 kW AC | ||||||
Electrical system | Lifting motor | 4 kW AC | |||||
Output voltage | 60V | ||||||
Charging voltage | 220V | ||||||
Number of batteries | 10 lead-acid batteries | ||||||
Battery capacity | 83ah | ||||||
Battery life | ndirect work 7-8 hours | ||||||
Charging time | 5-6 hours (six-stage intelligent automatic stop when fully charged) | ||||||
Lights and signals | Instruments, lights, horns, turn signals, etc. | ||||||
drive axle | 1:41 (100mm pipe diameter) Cast steel square plate bridge (wear-resistant type) | ||||||
Chassis system | Tire | Front tire 650-10 (solid, widened tire), Rear tire 500-8 (solid, widened tire) [Mining-grade wear-resistant tires] | |||||
Steering rear axle | Thickened double steel plate steering axle | ||||||
Braking method | Hydraulic brakes + large handbrake, hill start assist, hill descent control, electronic retarder. | ||||||
Lifting cylinder | Reinforced sealing dual hydraulic cylinder 73*400 [High-precision machining, wear-resistant sleeve] | ||||||
Other configurations | Fork length | Standard configuration includes 1.22-meter wear-resistant forks, forged in one piece (optional). | |||||
Gantry material | Dual hydraulic cylinders (forklift-specific 148 steel profile) | ||||||
Steering method | Hydraulic power steering (microcomputer controlled/can be raised and lowered while moving) | ||||||
Turning radius | 90° can turn on the spot | ||||||
Climbing angle | 15°-25° | ||||||
Meets national vehicle registration standards [Can be registered] | Power off when leaving the seat, power off the handbrake, access to the system via password or card swipe, explosion-proof valve, and anti-climbing mechanism. | ||||||
Vehicle accessories | Fire extinguisher/charger | ||||||
